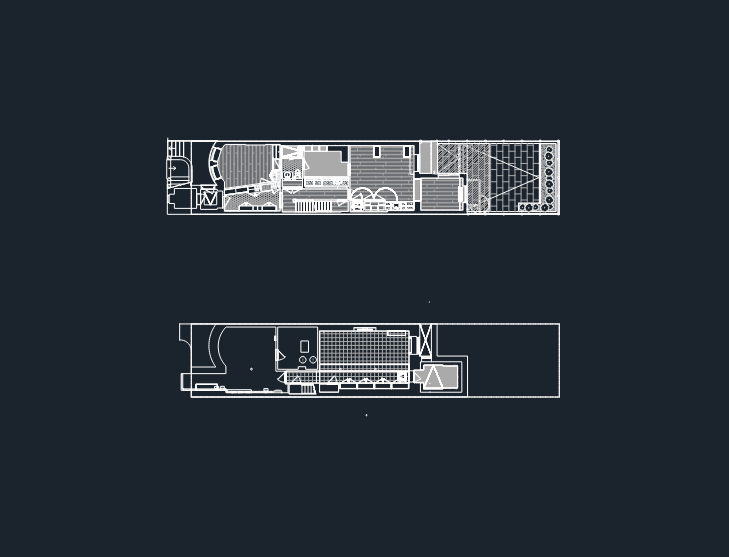

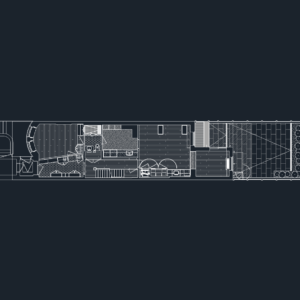

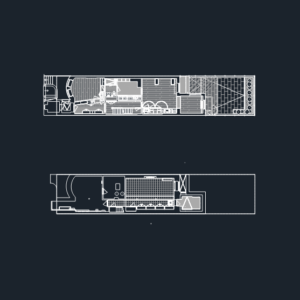

Ground floor and cellar floor plans for a narrow lot residential project. Includes existing vs proposed flooring patterns, millwork (MLWK), and MEP service locatiosn for GM, EM, and WH. Basic property lines and construction layers included. 1/4″ = 1′-0″ scale.
Architectural backgrounds for 19W87 residential renovation
