Child Care Hospital DWG Plan for AutoCAD

Child Care Hospital DWG Plan for AutoCAD

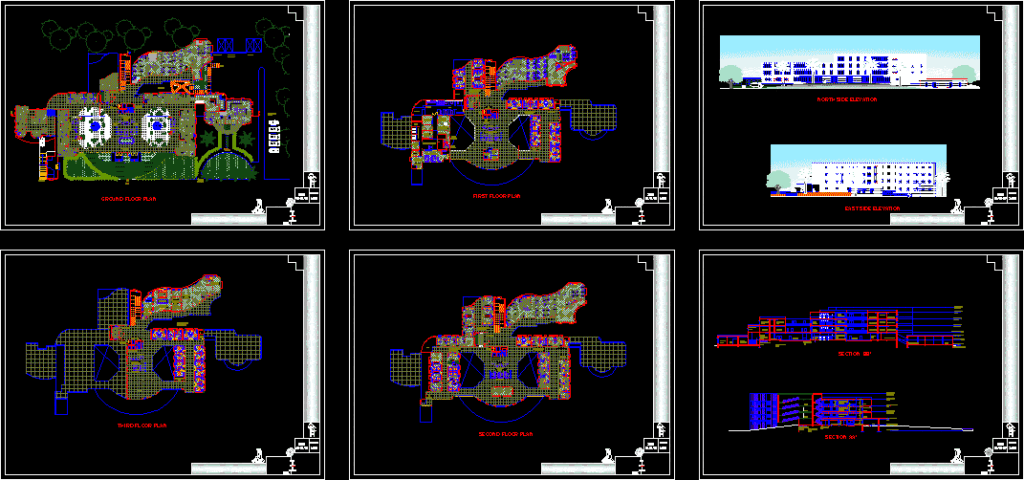

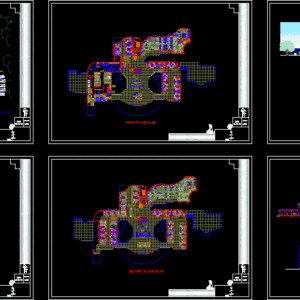

this is a child care hospital.in this dwg have floor plans with the elevations; also have a site plan and a landscape plan.

Drawing labels, details, and other text information extracted from the CAD file:

p a e d i a t r i c h o s p i t a l, date, sign., kitchen pantry, lift, play area, play area for kids, s i t e p l a n, c h i l d c a r e h o s p i t a l, help desk, waiting area, public toilets, i.c.u, c.s.s.d, scrub room, doctors changing, semi sterlized lobby, waiting in o.t zone, emergency ent. in o.t. zone, nurses changing, doctors room, preoperative room, post operative room, store, housekeeping store, morgue, doctors room, control room, machine room, c.t scan, n.i.c.u, ducts for services, staff room, second floor plan, o.p.d department, clinical labs department, finance department, directors office, e.d.p department, registration counter, juice counter, open area, four wheeler parking, staff quarters, house keeping department, lift, third floor plan, medical gas supply plant, ac plant, wet linen carts, soiled linen, flatwork iron, chemical treatment of stained linen, linen store and issuing counter, dormitory of staff of hospital, rest room of staff of hospital, trench line, general ward, ground floor plan, play room, ent, north side elevation, lobby, preoperative room, minor ot, minor ot, semi private ward, doctors consultation room, nurse station, reception foyer, way to private wards, private ward, corridoor, haemetology lab, courtyard, conference area, library, section bb’, porch, entrance foyer, curtain walling, section aa’, east side elevation, c h i l d c a r e, first floor, ground floor, third floor, first floor plan, second floor, s e c t i o n s, e l e v a t i o n s, main road, ent., doctors parking, four wheeler parking, two wheeler parking, two wheeler parking, cafeteria, medical shop, play area for kids, sand pit for slides, staff parking, four wheeler parking, evergreen trees, deciduous trees, flowering shrubs, dense foliage trees, flowering trees, fruit trees, avenue trees, l a n d s c a p e p l a n, to ujjain, waste treatment plant, board of pollution control, to a.b. road, shalimar township, to vijay nagar, s i t e, lasudia, to ujjain road, life care hospital, key location plan, area statement, c h i l d c a r e, h o s p i t a l

Raw text data extracted from CAD file:

P A E D I A T R I C H O S P I T A L SOURABH GOUR B.ARCH IX SEM AR- 501; DESIGN SOA IPSA DATE SIGN. N SCALE 1:200 01 \A1;3.6m \A1;3.6m \A1;3.6m \A1;3.6m \A1;0.6m \A1;2.1m \A1;2.1m Kitchen Pantry Lift Play Area Play Area For Kids \A1;3.0 m S I T E P L A N C H I L D C A R E H O S P I T A L SOURABH GOUR B.ARCH IX SEM AR- 501; DESIGN SOA IPSA DATE SIGN. SCALE 1:500 05/01/07 \A1;9.0m \A1;24.3m \A1;5.0m \A1;5.0m \A1;160.0m \A1;170.0m \A1;25.0 m \A1;9.0m \A1;6.0m \A1;6.0m \A1;5.1m \A1;3.5m \A1;9.0m \A1;29.8m \A1;46.4m \A1;37.7m \A1;5.3m \A1;13.5m \A1;38.1m \A1;10.4m \A1;175 MT. \A1;160 MT. \A1;24.3m \A1;5.0m \A1;5.0m \A1;160.0m \A1;175.0m \A1;25.0m \A1;9.0m \A1;6.0m \A1;6.0m \A1;5.1m \A1;3.5m \A1;9.0m \A1;29.8m \A1;46.4m \A1;37.7m \A1;5.3m \A1;13.5m \A1;38.1m \A1;10.4m \A1;9.0m 0.0m 2.5m 2.95m Reception & Nurses Station Lifts 1.3 x 1.1 m Help Desk Waiting Area Public Toilets Lift 1.3 x 2.4 m I.C.U C.S.S.D Major O.T 1 (4.8 m x 4.8m) Major O.T 2 (6.0m x 4.0m) Minor O.T 2 (6.0m x 4.0m) Minor O.T 1 (5.0m x 3.8m) Scrub Room Doctors Changing Semi Sterlized Lobby Waiting In O.T Zone Emergency Ent. In O.T. Zone Nurses Changing Doctors Room Preoperative Room Post Operative Room Store Private Ward Wing (3.80m x 5.0m) Housekeeping Store Semi Private Wards (5.60m x 4.80m) Morgue Lift 1.3 x 2.4 m Doctors Room Control Room Machine Room C.T Scan Kitchen Pantry Lift N.I.C.U Ducts For Services Reception & Nurses Station Lifts 1.3 x 1.1 m Help Desk Waiting Area Public Toilets Lift 1.3 x 2.4 m Semi Private Wards (5.60m x 4.80m) Kitchen Pantry Lift Ducts For Services Doctors Room Store Semi Private Rooms (4.80m x 4.80m) Staff Room SECOND FLOOR PLAN Lift 1.3 x 2.4 m Housekeeping Store Doctors Consultation Rooms (5.0m x 4.0m) O.P.D Department Clinical Labs Department Physiotherapy Room (12m x 4.8m) Pathology Lab (7.0m x 10.0m) Reception & Payment Counter Lifts 1.3 x 1.1 m Finance Department Staff Room Directors Office E.D.P Department Registration Counter Help Desk Waiting Area Waiting Area Xray Lab (11.0m x 4.8m) Haemetology Lab (7.5m x 13.0m) Waiting Area Conference Room (10m x6.0m) Central Library (12m x 12m) Kitchen (8.0m x 11m) Public Toilets (3.6m x 3.3 m) L.T Panel Room area 50 sq m Juice Counter Lift 1.3 x 2.4 m Slope 1:12 Slope 1:12 Open Area Four Wheeler parking lifts 1.3 x 1.1 m Help Desk Waiting Area Public Toilets Laundry & Linen lift 1.3 x 2.4 m Staff Quarters House Keeping Department Reception & Nurses Station Kitchen Pantry lift Ducts For Services Play Area Private Ward Wing (3.80m x 5.0m) THIRD FLOOR PLAN Medical Gas Supply Plant AC Plant Store wet linen carts soiled linen flatwork iron Chemical Treatment Of Stained Linen Linen store and issuing counter Dormitory of Staff of Hospital Rest Room of staff of hospital B B' TRENCH LINE M F Housekeeping Store General Ward GROUND FLOOR PLAN General Ward General Ward Play Area Play Area Play Area RAMP SLOPE 1:8 RAMP SLOPE 1:12 Play Room Play Area For Kids Play Area For Kids 0.0m 1.5m ENT NORTH SIDE ELEVATION 2.95m lvl at plinth 6.55m Lvl at fst floor 10.15m lvl at second floor 13.75m lvl at third floor 17.35m lvl at terrace 19.75m lvl at highest slab 0.0m lvl at ground .45m lvl at plinth Directors Office Lobby Finance Department Preoperative Room Minor OT MInor OT Semi Private Ward Semi Private Ward Doctors Consultation Room Waiting Area Nurse Station Reception Foyer Way to Clinical Labs & General Wards Way to Private Wards Private Ward Corridoor Haemetology Lab Courtyard Way to Private Wards Way to Private Wards Private Ward Private Ward Private Ward Private Ward Private Ward Corridoor Corridoor Waiting Area Courtyard Conference Area Library 5.20m lvl at slab SECTION BB' 100 TH P.C.C BED EARTH FILLING 2.25M 0.6m th Boulder & Murrum 2.95m lvl at plinth 6.55m lvl at first floor 10.15m lvl at second floor 13.75m lvl at third floor 17.35m lvl at terrace 19.75m lvl at highest slab Reception Foyer Nurse Station & Reception Lobby Lobby Lobby Lobby Porch Entrance Foyer Nurse Station & Reception Nurse Station & Reception Curtain Walling 3.6m 3.6m 3.6m 3.6m Lobby Lobby 5 5 5 0.0m lvl at Ground SECTION AA' 100 TH P.C.C BED EARTH FILLING 2.25M 0.6m th Boulder & Murrum EAST SIDE ELEVATION Private Ward Wing (3.80m x 5.0m) C H I L D C A R E H O S P I T A L\C256; A A 3.0 m Nurse Station FIRST FLOOR C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 GROUND FLOOR C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 THIRD FLOOR C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 FIRST FLOOR PLAN SECOND FLOOR C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 S E C T I O N S C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 E L E V A T I O N S C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:200 05/01/07 5 5 25.0 m 5 5 5 5 3.5m 5 5 5 5 5 5 5 5 1.0m 0.0 m 2.5m 2.0m 17.35m 19.75m 10.15m 13.75m 10.15m 5.20m 0.0m 19.75m 5.20m 0.0m 0.0m 1.0m 1.5m 1.0m 1.5m 2.5m 0.0m 0.0m 2.5m 1.5m 2.5m 0.0m 0.0m MAIN ROAD ENT ENT. 5 ENT Slope 1:12 Doctors Parking Four Wheeler Parking Two Wheeler Parking Two Wheeler parking Slope 1:12 Cafeteria Medical Shop Medical Gas Supply Plant AC Plant A' <> ENT Slope 1:12 0.0 m <> ENT 0.0m Slope 1:30 2.5m 2.5m 5 PLAY AREA FOR KIDS SAND PIT FOR SLIDES Staff Parking Four Wheeler Parking EVERGREEN TREES DECIDUOUS TREES FLOWERING SHRUBS DENSE FOLIAGE TREES FLOWERING TREES FRUIT TREES AVENUE TREES 2.5m L A N D S C A P E P L A N C H I L D C A R E H O S P I T A L DATE SIGN. SCALE 1:500 05/01/07 <> 5 5 5 5 5 5 3.5m 5 5 5 5 5 5 5 5 1.0m 0.0 m 2.5m 2.0m 17.35m 19.75m 10.15m 13.75m 10.15m 5.20m 0.0m 5.20m 0.0m 0.0m 1.0m 1.5m 1.0m 1.5m 2.5m 2.5m 0.0m .75m 0.0m 2.5m 1.5m 2.5m 0.0m 0.0m MAIN ROAD ENT ENT. 5 ENT Slope 1:12 Doctors Parking Four Wheeler Parking Two Wheeler Parking Two Wheeler parking Slope 1:12 Cafeteria Medical Shop Medical Gas Supply Plant AC Plant C A' C' <> ENT Slope 1:12 0.0 m <> ENT 0.0m Slope 1:30 2.5m 2.5m 5 PLAY AREA FOR KIDS SAND PIT FOR SLIDES Staff Parking Four Wheeler Parking 0.0M 1.0M 1.5M 2.5M 0.0M SECTION CC' (SITE SECTION) TO N.H.-3; A.B. ROAD TO UJJAIN 17.35m 17.35m 1.5m 0.5 m 4.5 m 1.0 m 6.5 m 1.5m Waste Treatment Plant BOARD OF POLLUTION CONTROL TO A.B. ROAD SHALIMAR TOWNSHIP TO VIJAY NAGAR S I T E TO A.B. ROAD 175 MT. 160 MT. LASUDIA TO UJJAIN ROAD LIFE CARE HOSPITAL SCHEME NO. 78-II SITE IS ABT. 700 MTS. FROM LIFE CARE HOSPITAL KEY LOCATION PLAN AREA STATEMENT C H I L D C A R E S I T E P L A N H O S P I T A L DATE SIGN. SCALE 1:500 05/01/07 GIVEN SITE : 175 M X 160 M TOTAL SITE AREA : 28,000 SQ M FAR : 1 FRONT MOS : 25 SQ M SIDE AND REAR MOS : 9 SQ M TOTAL GROUND COVERAGE : 3180SQ M SUPER BUILT UP AREA : 8,428 SQ M TOTAL BUILT UP AREA : 11,608 SQ M TOTAL AREA IN % : 40%

Language	English
Drawing Type	Plan
Category	Hospital & Health Centres
