Detached House DWG Full Project for AutoCAD

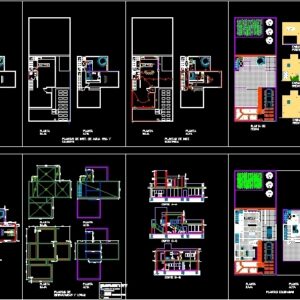

Housing project already done in Catamarca is located on the ground floor being, dining, kitchen and bath on first floor one bedroom suite, laundry room, spa tub, are dimensioned drawings, facilities, cutting and facades technological cuts constructive.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ground floor, top floor, roof plant, plants of structures and slabs, inst plants. cloacal, inst plants. of cold and hot water, inst plants. electrical, court bb, court aa, court cc, rear facade, front facade, building cut, plants, living, hall, dining room, kitchen, bathroom, gallery, garden, patio, terrace, step, bedroom, lavad., closet, stone foundation, leveling folder, water tank, poor hollow subfloor, hº aº slab, anodized aluminum carpentry, chained, beams, horizontal and vertical insulating layer, overload, columns, stone foundations, bases, pp

Raw text data extracted from CAD file:

\A1;5.00 \A1;4.40 \A1;5.00 \A1;2.20 \A1;1.80 \A1;2.80 \A1;1.80 \A1;4.00 \A1;3.00 \A1;3.20 \A1;2.40 \A1;1.80 \A1;1.10 \A1;4.40 \A1;1.75 \A1;6.40 \A1;4.00 \A1;1.40 \A1;4.40 \A1;2.20 \A1;4.00 \A1;1.20 \A1;1.40 \A1;2.20 \A1;4.40 \A1;4.00 \A1;5.00 \A1;2.20 \A1;4.40 \A1;2.60 \A1;4.00 \A1;3.00 \A1;4.20 \A1;3.80 \A1;7.80 \A1;3.60 \A1;0.40 \A1;15.40 \A1;12.00 \A1;4.00 \A1;2.20 \A1;1.05 \A1;5.00 \A1;6.40 \A1;5.60 \A1;0.60 \A1;0.20 \A1;0.20 \A1;1.05 \A1;6.00 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;3.00 \A1;1.00 \A1;0.20 \A1;0.20 \A1;4.40 \A1;9.80 \A1;0.20 \A1;0.20 \A1;4.20 \A1;1.60 \A1;4.60 \A1;4.20 \A1;2.40 \A1;5.20 \A1;4.20 \A1;6.60 \A1;4.60 \A1;5.20 \A1;1.00 \A1;2.40 \A1;1.60 \A1;0.20 \A1;0.20 \A1;0.20 \A1;0.20 \A1;1.00 \A1;2.60 \A1;2.77 \A1;2.72 \A1;0.72 \A1;1.00 \A1;1.00 \A1;2.62 \A1;0.30 \A1;2.65 \A1;2.35 \A1;2.62 \A1;0.30 \A1;2.52 \A1;0.10 \A1;1.00 \A1;1.00 \A1;0.30 \A1;0.06 \A1;0.80 \A1;2.00 \A1;0.20 \A1;0.20 \A1;1.50 \A1;0.50 \A1;0.40 \A1;0.10 \A1;2.62 \A1;0.30 \A1;1.00 \A1;0.06 \A1;2.20 \A1;0.20 \A1;0.20 \A1;0.10 \A1;1.85 \A1;0.20 \A1;0.05 \A1;2.62 \A1;0.30 \A1;1.03 \A1;0.03 \A1;2.29 \A1;0.30 \A1;0.50 \A1;0.30 \A1;0.18 \A1;0.10 \A1;1.60 \A1;0.72 \A1;1.72 \A1;2.62 \A1;0.30 \A1;1.11 \A1;2.32 \A1;0.30 \A1;0.50 \A1;0.03 \A1;1.00 \A1;3.20 \A1;0.18 \A1;1.00 \A1;4.20 \A1;2.40 \A1;1.90 \A1;3.00 \A1;2.60 \A1;2.60 \A1;3.20 \A1;0.60 \A1;4.20 \A1;1.15 \A1;1.15 \A1;11.80 \A1;4.60 \A1;3.00 \A1;1.90 \A1;1.35 \A1;1.35 \A1;4.60 \A1;0.20 \A1;4.20 \A1;4.20 \A1;1.10 \A1;5.20 \A1;5.80 \A1;6.60 \A1;1.25 \A1;1.25 \A1;0.60 \A1;0.54 \A1;0.20 \A1;0.00 \A1;0.20 \A1;0.10 \A1;1.15 \A1;0.60 \A1;0.60 \A1;0.60 \A1;0.60 \A1;0.50 \A1;0.60 \A1;0.60 \A1;0.60 \A1;0.50 \A1;0.60 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 10 10 11 12 13 14 15 16 16 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 PLANTA BAJA PLANTA ALTA PLANTA DE TECHO PLANTA ALTA PLANTA BAJA PLANTAS DE ESTRUCTURAS Y LOSAS PLANTA BAJA PLANTA ALTA PLANTAS DE INST. CLOACAL PLANTAS DE INST. DE AGUA FRIA Y CALIENTE PLANTA ALTA PLANTA BAJA PLANTA BAJA PLANTA ALTA PLANTAS DE INST. ELECTRICA C 5 B B 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 CORTE B-B 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 CORTE A-A CORTE C-C A A C A C C A 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 3 2 1 4 10 9 8 7 6 5 16 15 14 13 12 11 11 12 5 6 7 8 9 10 4 1 2 3 13 14 15 16 5 5 FACHADA POSTERIOR FACHADA FRENTE FACHADA FRENTE 5 5 5 5 5 5 5 5 5 5 5 CORTE CONSTRUCTIVO PLANTA ALTA PLANTA BAJA L10 L8 L2 L7 L6 L5 L3 L4 L1 PLANTA ALTA PLANTA BAJA PLANTAS EQUIPADAS ESTAR HALL COMEDOR COCINA BAÑO GALERIA JARDIN PATIO TERRAZA PASO DORMITORIO BAÑO TERRAZA LAVAD. CLOSET CLOSET CIMIENTO CORRIDO DE PIEDRA ENCADENADO Hº Aº 20 X 20 CM CAPA AISLADORA 5 CM MURO LAD. HUECO 18 X 19 X 39 CM VIGA DE Hº Aº 20 X 30 CM LOSA DE Hº Aº 10 CM DE ESPESOR MORTERO DE ACIENTO Y PISO CERAMICO ( 3 CM) CARPETA DE NIVELACION LOSA DE Hº Aº 10 CM DE ESPESOR VIGA DE Hº Aº 20 X 30 CM TANQUE DE AGUA CONTRAPISO Hº POBRE LOSA DE Hº Aº MADERA DE 2,5 CM X 30 CM PISO CERAMICO 33 X 33 CARPINTERIA DE ALUMINIO ANODIZADO VIDRIO DE 3 MM SOBRE CIMIENTO CORRIDO SE REALZARA ENCADENADO HORIZONTAL DE 20 X 20 CM VINCULANDO LAS COLUNMAS PLANTA BAJA PLANTA ALTA ENCADENADOS VIGAS ARMADURA DE REPARTICION Ø 6 C/ 25 CM HIERRO Ø 10 SEPARACION C/ 15 CM CIMIENTO CORRIDO DE PIEDRA 60 CM X 80 CM ENCADENADO HORIZONTAL INFERIOR Hº Aº Ø 10-Ø 6 ZOCALO ALTURA 10 CM REVOQUE GRUESO Y FINO A LA CAL (INTERIOR PINTADO) REVOQUE GRUESO (EXTERIOR PINTADO) ESTRIVOS HIERRO Ø 6 HIERRO Ø 10 VEREDA PERIMETRAL DE 5 CM VIGA DE Hº Aº 20 X 30 CM CAPA AISLADORA HORIZONTAL Y VERTICAL MURO LAD. HUECO 18 X 19 X 39 CM LOSA DE Hº Aº 10 CM DE ESPESOR MORTERO DE ACIENTO Y PISO CERAMICO ( 3 CM) CONTRAPISO Hº POBRE PISO CERAMICO 33 X 33 CARPINTERIA DE ALUMINIO ANODIZADO VIDRIO DE 3 MM SOBRECARGA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 COLUMNAS CIMIENTOS CORRIDOS DE PIEDRA BASES PP Ø 110 PP Ø 63 PP Ø 40 PP Ø 63 PP Ø 110 PP Ø 110 PP Ø 63 PP Ø 40 PP Ø 40 PP Ø 40 PP Ø 63 PP Ø 110 PP Ø 40 PP Ø 40 PP Ø 110 P.P P.P P.P P.P PP Ø 63 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 L9
