Electrical Symbols DWG Plan for AutoCAD

Electrical Symbols DWG Plan for AutoCAD

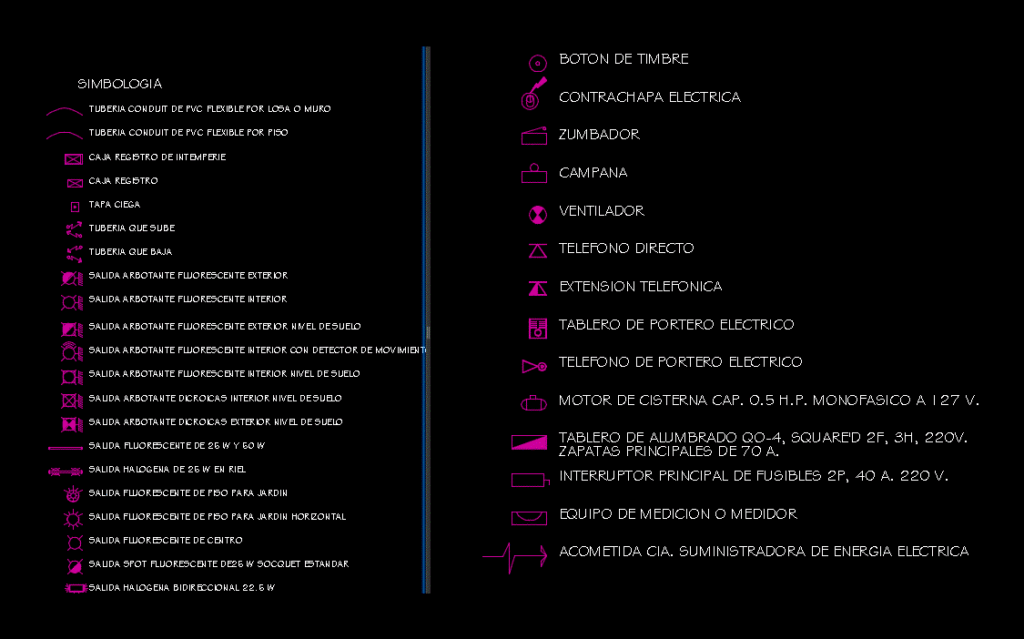

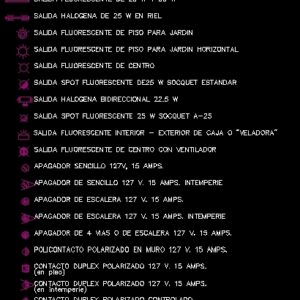

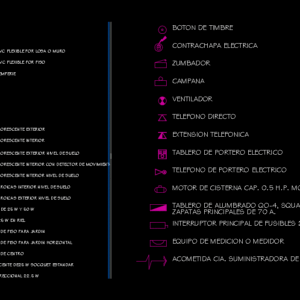

Symbology to use for your electrical plans.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

measuring equipment meter, stairway vane damper v. amps., a., polarized duplex contact v. amps., square’d lighting board, fuse main switch a. v., cia. electric power supplier, cap tank engine . monophase v., registry box, rising pipe, down pipe, fluorescent spot output, fluorescent inner flying saucer, flexible pvc conduit pipe for slab wall, flexible pvc conduit tubing per floor, center fluorescent outlet, exterior fluorescent flying out, symbology, wall-mounted policontact v. amps., polarized duplex contact v. amps., bell button, controlled polarized duplex contact, by eraser v. amps., simple damper amps., v. amps. outdoor, output of t.v., buzzer, fan, Bell, direct phone, telephone extension, electric door phone, electric door panel, Fluorescent Outlet, outboard dichroic outboard ground level, Fluorescent flying butt outlet with motion detector, Fluorescent flying outboard ground level, fluorescent spot output socquet standard, dichroic flying buttress interior level, polarized duplex contact v. amps., fluorescent outlet for garden floor, halogen out of rail, fluorescent floor outlet for horizontal garden, central fluorescent outlet with fan, fluorescent output, staircase v. amps., staircase v. amps. outdoor, blind cover, weather register box, electric backplate, halogen two way output, fluorescent flying overhead floor level

Raw text data extracted from CAD file:

TV EQUIPO DE MEDICION O MEDIDOR APAGADOR DE 4 VIAS O DE ESCALERA 127 V. 15 AMPS. ZAPATAS PRINCIPALES DE 70 A. CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. TABLERO DE ALUMBRADO QO-4, SQUARE'D 2F, 3H, 220V. INTERRUPTOR PRINCIPAL DE FUSIBLES 2P, 40 A. 220 V. ACOMETIDA CIA. SUMINISTRADORA DE ENERGIA ELECTRICA MOTOR DE CISTERNA CAP. 0.5 H.P. MONOFASICO A 127 V. CAJA REGISTRO TUBERIA QUE SUBE TUBERIA QUE BAJA SALIDA SPOT FLUORESCENTE 25 W SOCQUET A-25 SALIDA ARBOTANTE FLUORESCENTE INTERIOR TUBERIA CONDUIT DE PVC FLEXIBLE POR LOSA O MURO TUBERIA CONDUIT DE PVC FLEXIBLE POR PISO SALIDA FLUORESCENTE DE CENTRO SALIDA ARBOTANTE FLUORESCENTE EXTERIOR SIMBOLOGIA POLICONTACTO POLARIZADO EN MURO 127 V. 15 AMPS. CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. BOTON DE TIMBRE CONTACTO DUPLEX POLARIZADO CONTROLADO POR APAGADOR 127 V. 15 AMPS. (en piso) APAGADOR SENCILLO 127V, 15 AMPS. APAGADOR DE SENCILLO 127 V. 15 AMPS. INTEMPERIE SALIDA DE T.V. ZUMBADOR VENTILADOR CAMPANA TELEFONO DIRECTO EXTENSION TELEFONICA TELEFONO DE PORTERO ELECTRICO TABLERO DE PORTERO ELECTRICO SALIDA FLUORESCENTE INTERIOR - EXTERIOR DE CAJA O "VELADORA" SALIDA ARBOTANTE DICROICAS EXTERIOR NIVEL DE SUELO SALIDA ARBOTANTE FLUORESCENTE INTERIOR CON DETECTOR DE MOVIMIENTO SALIDA ARBOTANTE FLUORESCENTE EXTERIOR NIVEL DE SUELO SALIDA SPOT FLUORESCENTE DE25 W SOCQUET ESTANDAR SALIDA ARBOTANTE DICROICAS INTERIOR NIVEL DE SUELO CONTACTO DUPLEX POLARIZADO 127 V. 15 AMPS. (en intemperie) SALIDA FLUORESCENTE DE PISO PARA JARDIN SALIDA HALOGENA DE 25 W EN RIEL SALIDA FLUORESCENTE DE PISO PARA JARDIN HORIZONTAL SALIDA FLUORESCENTE DE CENTRO CON VENTILADOR SALIDA FLUORESCENTE DE 25 W Y 50 W APAGADOR DE ESCALERA 127 V. 15 AMPS. APAGADOR DE ESCALERA 127 V. 15 AMPS. INTEMPERIE TAPA CIEGA CAJA REGISTRO DE INTEMPERIE CONTRACHAPA ELECTRICA SALIDA HALOGENA BIDIRECCIONAL 22.5 W SALIDA ARBOTANTE FLUORESCENTE INTERIOR NIVEL DE SUELO

Language	Spanish
Drawing Type	Plan
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Garden / Park
Tags	autocad, DWG, electrical, electrical symbols, electricity, plan, plans, simbolismo, symbolik, symbolism, symbolisme, symbology, symbols
