Fazenda Lagoa Phase 1 Urban Site Plan with 300m² Residential Lots

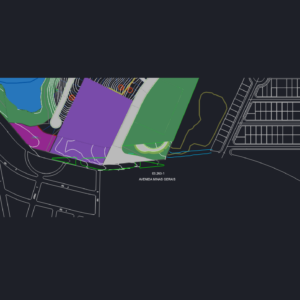

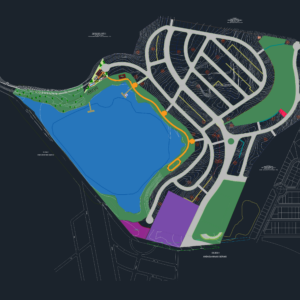

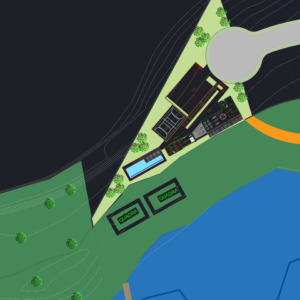

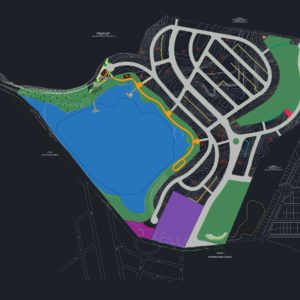

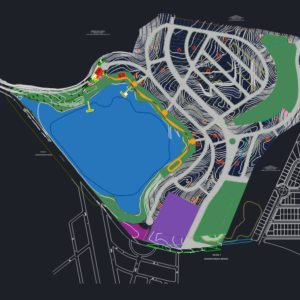

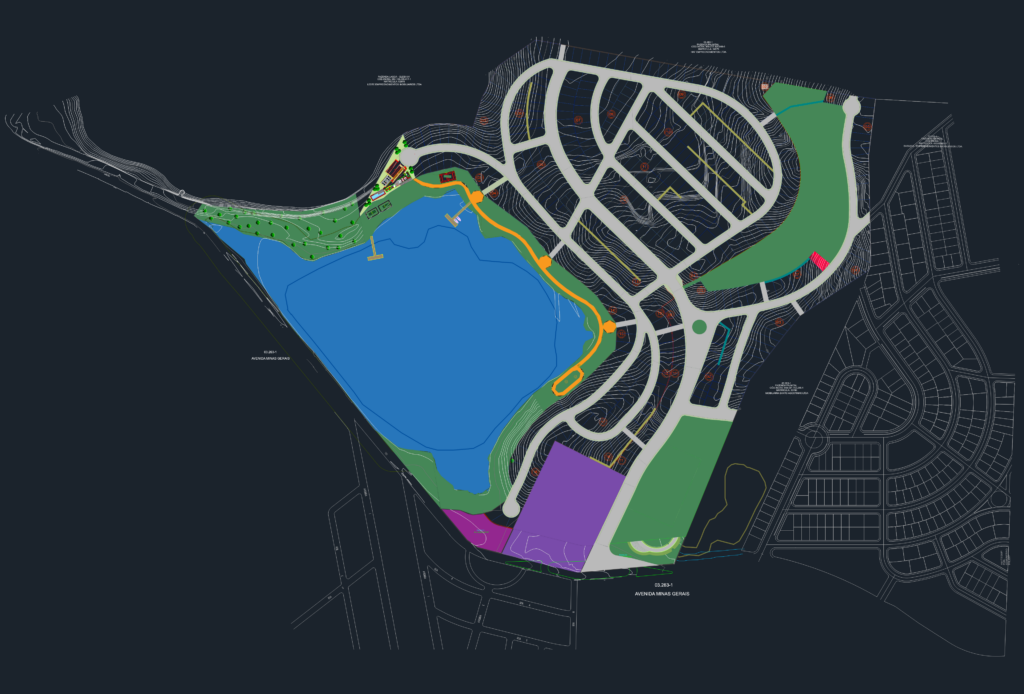

Urban site plan for a residential subdivision showing a large lake, topographical contour lines, and road network layout.

Detailed urban layout for residential subdivision including topographical contours, road network and utility easements (DNIT). Text in Portuguese.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Portuguese
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
Garden / Park, Parking
Uploaded by
CAD Workshop
Category
City Plans, Public Facilities
Published
May 15, 2026
Price $4.50
or

or get unlimited access from $7/mo

Tags

DWG site plan subdivision topography urbanism
