Fire Fighting Floor Plan for Factory Guard Houses with Fire Safety Systems

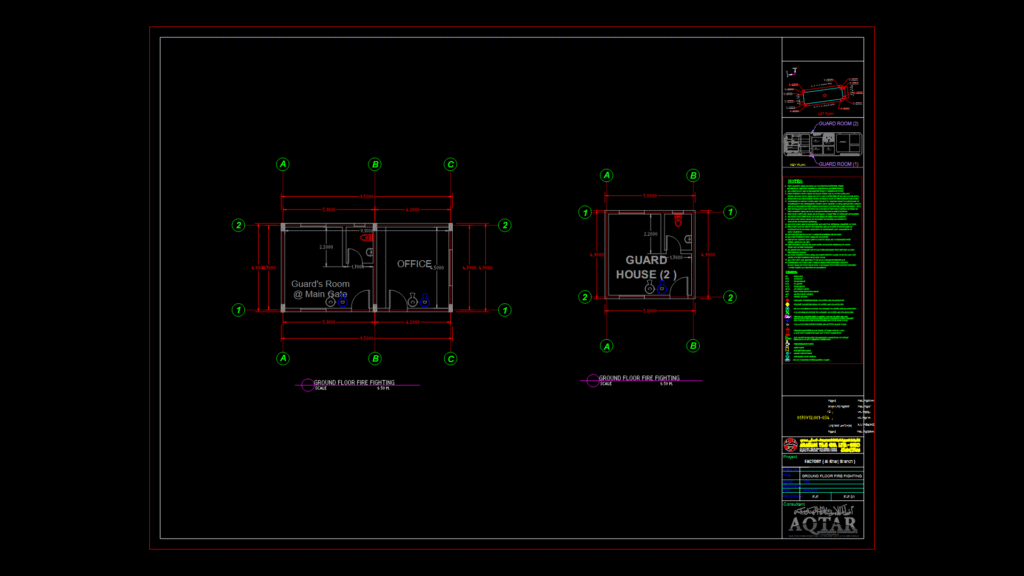

Ground floor fire fighting plan for two guard houses located at a factory in Al Kharj Branch, Saudi Arabia. The drawing features detailed layouts at 1:50 scale with complete fire safety provisions. Guard House 1 includes a guard’s room and office area with appropriate fire safety installations. Guard House 2 features a more compact security post design. The plan incorporates fire protection elements including fire hose cabinets, sprinkler systems, alarm check valves, and fire extinguishers following NFPA standards. Technical notes specify black steel SCH 40 piping for above-ground installations and CPVC SCH 80 with thrust blocks for underground systems. The drawing includes a comprehensive legend identifying all fire safety components, detailed installation requirements, and testing procedures for the fire fighting systems.
| Language | English |
| Drawing Type | Plan |
| Category | Utilitarian Buildings |
| Additional Screenshots | |
| File Type | dwg |
| Materials | Steel |
| Measurement Units | Metric |
| Footprint Area | 10 - 49 m² (107.6 - 527.4 ft²) |
| Building Features | |
| Tags | Factory Security, Fire Protection, Fire Safety, fire-fighting, guard house, NFPA standards, Security Building |
