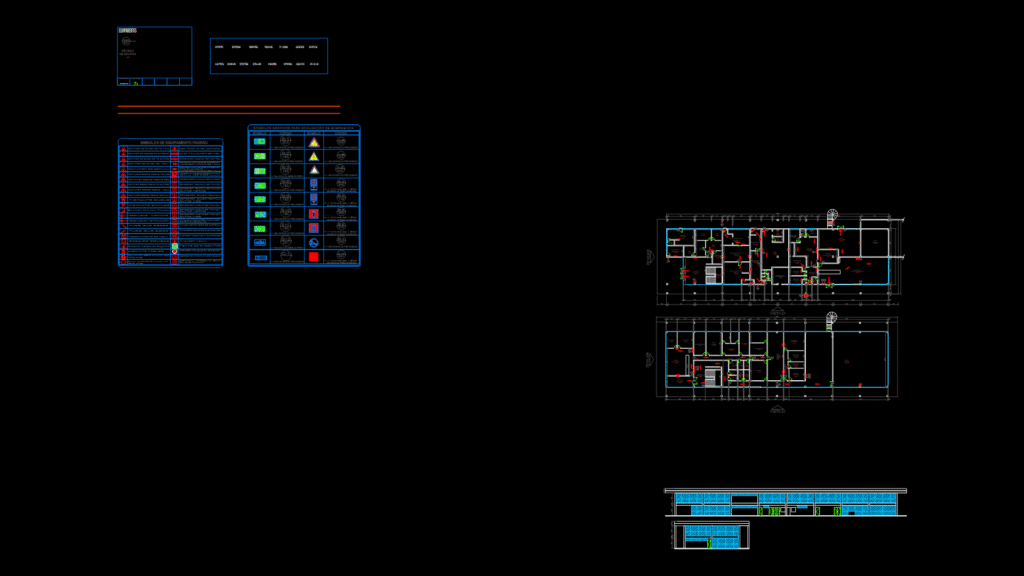

A comprehensive fire prevention and emergency system plan for a multi-floor commercial facility. The drawing includes detailed placement of fire protection equipment and emergency response elements throughout the building:
Fire Detection Components:
– Addressable fire detection system with smoke and heat detectors
– Linear and point-type smoke detectors (including options for ceiling/between-floor installation)
– Manual fire alarm activation points positioned at 1.80m height from floor level
– Audio-visual and electronic sound alarms with minimum 1-hour autonomy
Fire Suppression Equipment:
– Multiple fire extinguisher types (water, dry chemical, CO2, ABC powder, foam) with their respective classifications
– Wheeled fire extinguishers for enhanced coverage
– Single and double fire hydrants with strategic placement
– Sprinkler system with K-factor 25 and K-factor 80 heads (operating temperatures 79°C and 68°C respectively)
Emergency Elements:
– Emergency lighting with minimum 1-hour autonomy (including aclaramento and balizamento types)
– Emergency exit routes with directional flow indicators
– Meeting points for building occupants during emergencies
– Fire brigade assembly areas
– Vehicle access routes for emergency responders
The drawing includes technical specifications for installation heights, equipment identification codes, and follows Brazilian fire safety standards for commercial buildings.
