Ground Floor Electrical and Telecommunications Plan for Residential House

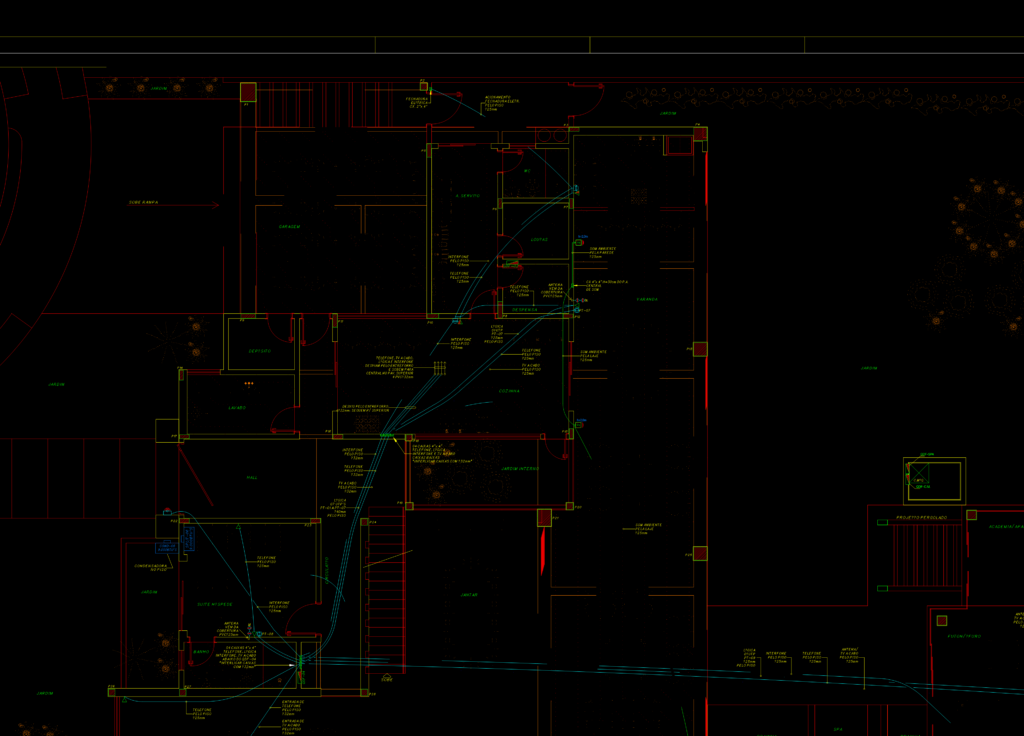

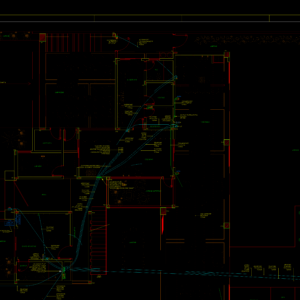

Ground floor layout for a residential house showing the full electrical and telecommunications infrastructure. Included are detailed legends for lighting, intercoms, TV points and even a built-in sound system. Also covers AC locations and external wiring for the pool and garden areas.

PREMIUM

File Details

File Type
DWG
Type
Plan
Language
Portuguese
Materials
Masonry, Concrete
Units
Metric
Area
250 – 499 m² (2691.0 – 5371.2 ft²)
Features
A/C, Pool, Garage, Garden / Park
Uploaded by
DWG Master
Category
Mechanical, Electrical & Plumbing (MEP)
Published
Apr 19, 2026
