Home DWG Plan for AutoCAD

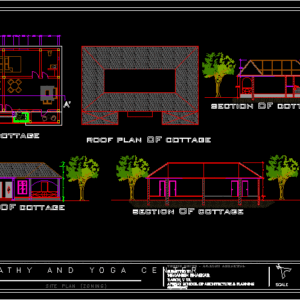

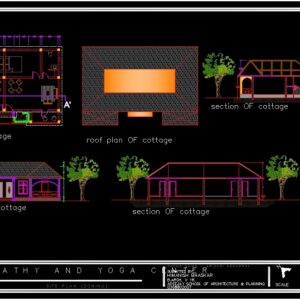

A design house with sectional plan and elevation. Built with gable

Drawing labels, details, and other text information extracted from the CAD file:

plan of cottage, elevation of cottage, section of cottage, roof plan of cottage, submitted by:, himanish bhaskar, b.arch, v yr., sheet no., scale

Raw text data extracted from CAD file:

\A1;500 \A1;500 \A1;2500 \A1;1650 \A1;2000 \A1;150 \A1;2300 \A1;100 \A1;450 \A1;2850 \A1;450 \A1;675 \A1;1736 \A1;2150 \A1;900 \A1;500 \A1;750 \A1;2150 \A1;2200 \A1;429 \A1;1575 \A1;1200 \A1;750 \A1;1200 \A1;230 \A1;1200 \A1;750 \A1;1200 \A1;1575 \A1;235 \A1;2135 \A1;291 \A1;230 \A1;911 \A1;400 \A1;2189 \A1;230 \A1;4250 \A1;205 \A1;1286 \A1;300 500.0 2500.0 1650.0 500.0 2000.0 150.0 2300.000000001863 5 450.0 plan OF cottage elevation OF cottage section OF cottage roof plan OF cottage \T2.15;NATUROPATHY AND YOGA CENTER \T1.45;THESIS GUIDE – AR.SUMI AGGARWAL SUBMITTED BY: HIMANISH BHASKAR B.ARCH, V YR. 0308803007 SHEET NO. SCALE APEEJAY SCHOOL OF ARCHITECTURE & PLANNING N \T1.45;SITE PLAN (ZONING) 2850.0 section OF cottage B’ B A A’ 450.0000000009313 674.819219504483 1735.504442089237 2150.0 900.0000000002328 500.0 750.0 2150.0 2200.000000000233 429.111897860188 1575.0 1200.0 750.0 1200.0 230.0 1200.0 750.0 1199.999999999069 1575.000000001863 234.5 2134.5 291.0 230.0000000018626 911.1991984192282 400.0 2188.800801578909 230.0 4249.518530594185 204.5 1285.981469405815 300.0
