HSBC Metropolitan 6th Floor Office fitout Floor Plan with Finishes

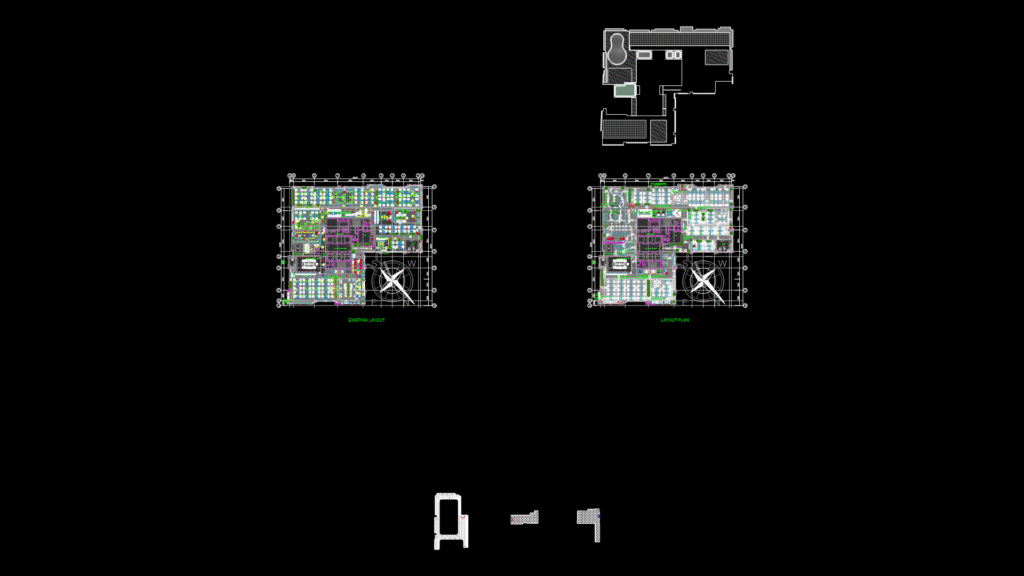

Complete 6th floor office fitout plan for HSBC Metropolitan facility showing both existing and proposed layouts. This plan details workspace organization, flooring materials, and MEP elements across approximately 600m².
The fitout includes:
– Open workstations: WSB (68 pax in main area, 10 pax in secondary area) and GTRF (40 pax) zones
– Meeting spaces: Boardroom (15P), standard meeting rooms (10P, 8P, 4P, 3P), and focus rooms
– Common areas: Reception (35m²), pantry with collaborative space (128m² + 63m²), and utility zones
Flooring specifications include SHAW products with precise material codes:
– Carpet: SHAW Collective (Hand in Hand Tile 5T450, Merge Color 50675, 460x910x7.25mm) in Ashlar 1/2 pattern
– Vinyl: SHAW Nordic (Code: Nordic 4377V, Driftwood 77120, 180x1220x5mm) in Herringbone pattern
The drawing includes MEP elements like emergency exits, smoke detectors, electrical distribution boards (MDB 400x250x600mm, DB-6F series), and audiovisual system integration (multiple TV locations 55″-86″).
| Language | English |
| Drawing Type | Plan |
| Category | Office |
| Additional Screenshots | |
| File Type | dwg |
| Materials | Glass, Plastic |
| Measurement Units | Metric |
| Footprint Area | 500 - 999 m² (5382.0 - 10753.1 ft²) |
| Building Features | A/C, Elevator |
| Tags | commercial interiors, floor plan, flooring finishes, HSBC, office fitout, open plan, workspace layout |
