Hydraulic Accessories DWG Block for AutoCAD

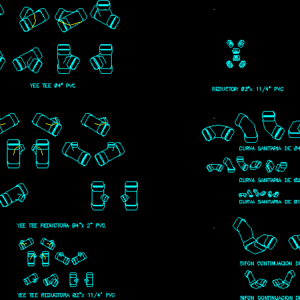

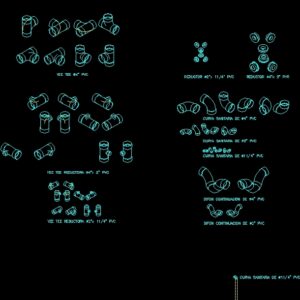

Isometric drawing of drainage nets in cemented systems of P:V:C:
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
Pvc sanitary curve, Yee tee pvc, Pvc reducer, Yee tee reductora pvc, Sifon continuation of pvc, Pvc sanitary curve, Pvc reducer, Sifon continuation of pvc, Base of construction, Technical notes: all dimensions have been taken directly from real accessories, The accessories presented here are for use in rainwater drainage, Drainage of water manufactured according to standard, objective, To facilitate the construction of isometric, Waste water disposal networks in, Design building construction housing., Example of file application, Sifon continuation of pvc, Pvc sanitary curve, Pvc reducer, Pvc sanitary curve, Pvc reducer, Pvc sanitary curve, The dotted line represents the projection of the pvc pipe, application, The user must configure osnap settings in the vignette snap and the, Snap by changing the isometric type snap., Remember that the key changes the ucs in the isometric snap mode., It is recommended to apply the regen command to properly display the, You can also create dynamic blocks for each accessory, That would facilitate your application even more.
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Block |
| Category | Bathroom, Plumbing & Pipe Fittings |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | |
| Measurement Units | |
| Footprint Area | |
| Building Features | Car Parking Lot |
| Tags | a válvula, accessories, autocad, block, drainage, drawing, DWG, hydraulic, isometric, nets, pipes, rohr, soupape, systems, tubulação, tuyau, valves, ventil |
