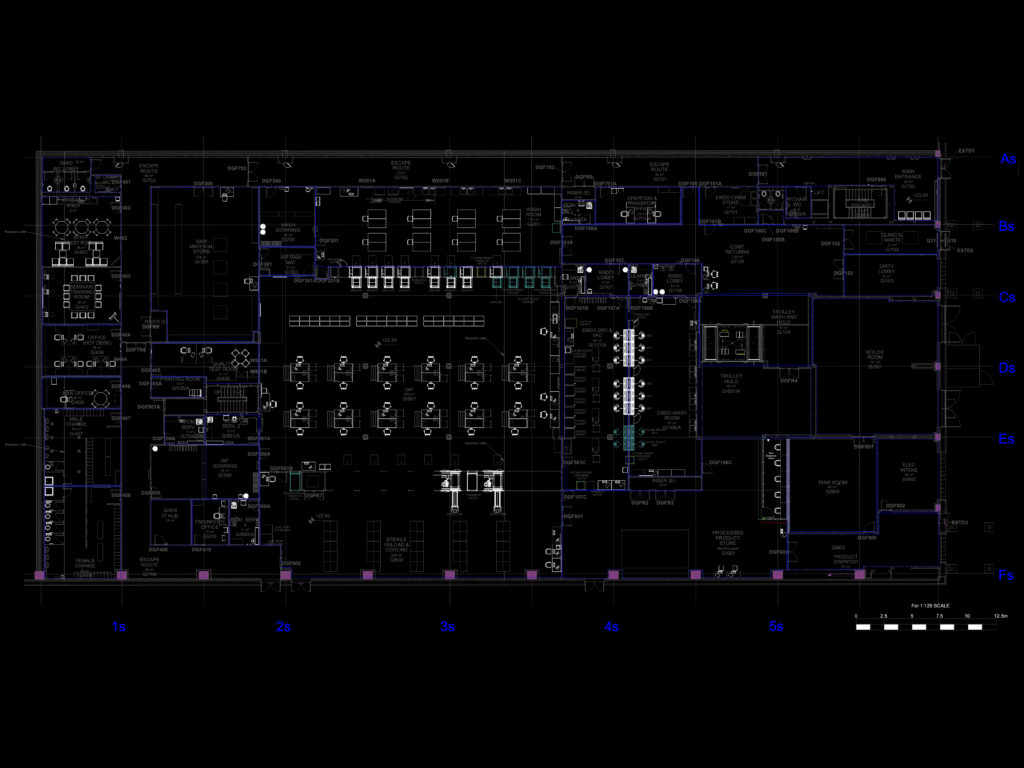

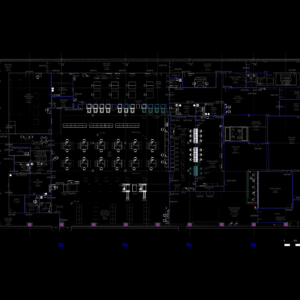

Floor plan layout for a medical facility specializing in sterile processing and endoscopy services. Includes dedicated zones for washing, sterilization, and cooling of medical equipment with specific areas for AER (Automated Endoscope Reprocessor) units and drying cabinets. The footprint covers approx. 90m x 44m with a detailed grid system (1s-5s / As-Fs) for structural coordination. Key rooms incl. Sterile Unload & Cooling (208 m²), Wash Room (157 m²), and various technical spaces like the Boiler Room (131 m²) and Tank Room (64 m²). MEP and plant spaces are integrated, featuring an electrical intake, IT hub, and dedicated escape routes per life safety standards. Equipment blocks are shown for washers, ultrasonic cleaners, and low-temp sterilizers, providing a complete functional flow for dirty-to-clean processing. Change rooms, staff rest areas, and office spaces are located on the perimeter to separate clean/dirty traffic flows.
Medical Facility Ground Floor Layout for Sterile Services and Endoscopy
