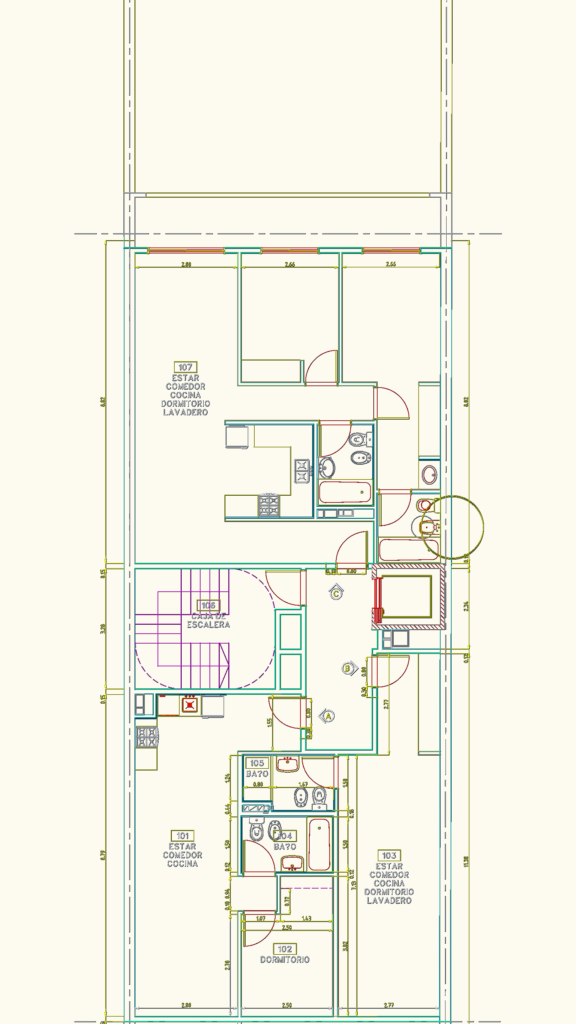

Floor plans and site layout for a multi-unit residential building designed for a deep, narrow lot. Includes ground floor entrance with a “local” commercial space and vehicular access leading to the back. Upper floors feature several apartment units, 101 through 107, each with living/dining combos, kitchens, and laundry areas. I’ve included common areas too, like a “quincho” (BBQ zone) and a swimming pool with a solarium at the rear of the property. The layout details grass-paved parking spaces and central circulation cores with an elevator and staircase. It’s a complete anteproyecto set with dimensions and room labels.Incluye plantas generales, departamentos tipo, áreas comunes y pileta.
Multi-Unit Residential Building Floor Plans and Site Layout CAD
