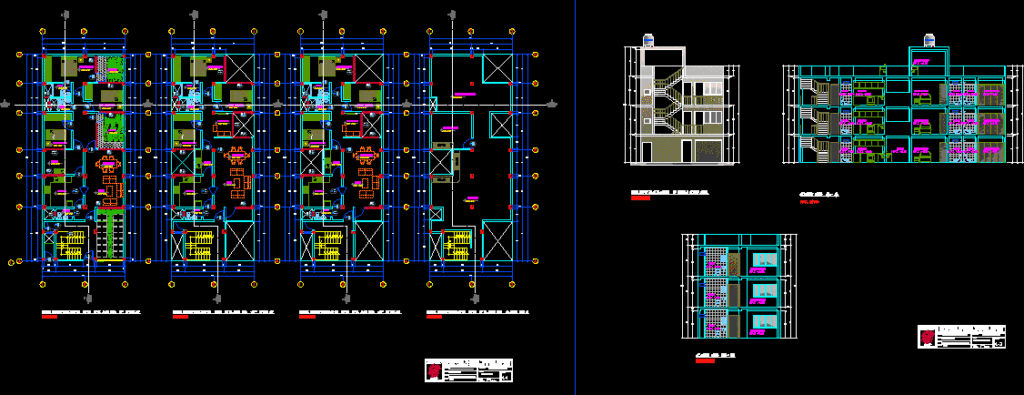

MULTIFAMILY HOUSING 3 LEVELS, TERRACE ZOTEA (PLANT SECTIONS AND ELEVATIONS);EACH LEVEL HAS 3 BEDROOMS( 2 SECONDARY 1 PRINCIPAL); KITCHEN; BATHROOM; LIVING DINING; SERVICE PATIO;THE FIELD IS 8×20 M. PROJECT BY HERMILIO VALDIZAN – HUANUCO – PERU

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

eternit, kitchen, bath, bedroom, bath, dinning room, living room, elevator door, bedroom, yard, garden, n.p.t., kitchen, bath, bedroom, bath, dinning room, living room, bedroom, be tv, n.p.t., yard, n.p.t., kitchen, bath, bedroom, bath, dinning room, living room, bedroom, be tv, yard, laundry, tendal roof, rooftop, sheet:, multifamily housing, architecture, draft:, flat:, teacher:, course:, student, gonzales jesus richard manolo, professional civil engineering school, National University, arq victor goicochea vargas, building, date, scale:, indicated, drawing:, r.g.j., sheet:, multifamily housing, draft:, flat:, teacher:, course:, student, gonzales jesus richard manolo, professional civil engineering school, National University, arq victor goicochea vargas, building, date, scale:, indicated, drawing:, r.g.j., eternit, n.p.t., n.p.t., in plant, in plant, n.p.t., in plant, kitchen, n.p.t., bedroom, n.p.t., yard, bath, n.p.t., bath, n.p.t., bedroom, n.p.t., bath, n.p.t., kitchen, bedroom, n.p.t., bath, bedroom, bath, kitchen, bedroom, bath, bedroom, bath, n.p.t., laundry, n.p.t., bedroom, n.p.t., bedroom, n.p.t., bath, n.p.t., bath, n.p.t.

Raw text data extracted from CAD file:

W GV D H Y D O S W S D Y H WV TP D V 1.00 1.00 1.00 2.10 0.80 P1 \A1;0.30 \A1;0.30 \A1;1.30 \A1;3.80 \A1;8.00 \A1;0.30 \A1;2.55 \A1;0.30 \A1;0.30 \A1;2.20 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;20.00 \A1;3.85 \A1;0.30 \A1;3.65 \A1;0.30 \A1;4.10 \A1;3.90 \A1;8.00 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.20 \A1;0.30 \A1;3.30 \A1;0.30 \A1;2.55 \A1;0.30 \A1;2.35 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;20.00 \A1;0.30 \A1;0.30 \A1;1.30 \A1;3.80 \A1;8.00 \A1;1.15 \A1;3.50 \A1;2.75 \A1;2.90 \A1;0.30 \A1;2.55 \A1;0.30 \A1;0.30 \A1;2.20 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;20.00 \A1;1.25 \A1;3.85 \A1;5.25 \A1;3.30 \A1;2.65 \A1;0.30 \A1;3.65 \A1;0.30 \A1;4.10 \A1;3.90 \A1;8.00 \A1;3.75 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.20 \A1;0.30 \A1;3.30 \A1;0.30 \A1;2.55 \A1;0.30 \A1;2.35 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;5.25 \A1;20.00 \A1;1.10 \A1;4.00 \A1;0.30 \A1;2.55 \A1;0.30 \A1;0.30 \A1;2.20 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;20.00 \A1;2.65 \A1;2.70 \A1;0.30 \A1;3.00 \A1;1.25 \A1;3.85 \A1;5.25 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.20 \A1;0.30 \A1;3.30 \A1;0.30 \A1;0.30 \A1;2.35 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;5.25 \A1;20.00 \A1;1.10 \A1;0.30 \A1;3.65 \A1;0.30 \A1;4.10 \A1;3.90 \A1;8.00 \A1;0.30 \A1;0.30 \A1;1.30 \A1;3.80 \A1;8.00 \A1;1.15 \A1;3.50 \A1;2.75 \A1;2.90 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;1.00 \A1;2.80 \A1;2.80 \A1;2.80 \A1;1.00 \A1;9.40 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;1.00 \A1;2.80 \A1;2.80 \A1;2.80 \A1;1.00 \A1;9.40 \A1;3.00 \A1;0.40 \A1;2.60 \A1;0.30 \A1;3.65 \A1;0.30 \A1;3.60 \A1;0.15 \A1;4.10 \A1;3.90 \A1;0.30 \A1;2.35 \A1;0.30 \A1;2.55 \A1;0.30 \A1;3.30 \A1;0.30 \A1;2.20 \A1;0.30 \A1;2.70 \A1;0.30 \A1;4.80 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;8.00 \A1;20.00 \A1;0.15 \A1;2.60 \A1;0.30 \A1;1.00 \A1;2.50 \A1;0.30 \A1;1.00 \A1;0.15 \A1;1.30 \A1;3.80 \A1;2.82 \A1;8.00 \A1;4.80 \A1;0.30 \A1;2.70 \A1;0.30 \A1;2.20 \A1;0.30 \A1;3.30 \A1;0.30 \A1;2.55 \A1;0.30 \A1;2.35 \A1;0.30 \A1;2.80 \A1;2.85 \A1;3.60 \A1;2.50 \A1;3.00 \A1;5.25 \A1;0.30 \A1;20.00 \A1;1.15 \A1;3.50 \A1;2.75 \A1;2.90 \A1;1.25 \A1;5.25 \A1;3.30 \A1;2.65 \A1;1.00 \A1;1.10 \A1;4.00 \A1;2.15 \A1;1.15 \A1;0.30 \A1;1.30 \A1;2.70 \A1;1.00 \A1;2.75 \A1;1.28 \A1;1.28 \A1;5.25 \A1;5.25 \A1;0.20 \A1;2.60 \A1;2.60 \A1;0.20 \A1;2.60 \A1;0.20 \A1;0.20 \A1;2.60 \A1;2.80 \A1;2.80 \A1;2.80 \A1;2.80 \A1;11.20 \A1;2.60 \A1;0.20 \A1;1.00 \A1;2.80 \A1;2.80 \A1;1.00 \A1;9.40 \A1;2.60 \A1;0.20 \A1;1.00 \A1;0.00 \A1;2.60 \A1;0.00 \A1;2.60 \A1;1.00 \A1;3.00 \A1;3.00 \A1;10.00 \A1;1.00 \A1;0.40 \A1;2.60 \A1;0.40 \A1;2.60 \A1;0.40 \A1;2.60 \A1;1.00 \A1;3.00 \A1;3.00 \A1;3.00 \A1;10.00 ETERNIT COCINA BAÑO BAÑO DORMITORIO BAÑO COMEDOR SALA Puerta Elevadisa DORMITORIO DORMITORIO PATIO JARDIN JARDIN N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.00 N.P.T. +0.00 N.P.T. +0.00 N.P.T. +0.15 N.P.T. +0.15 N.P.T. +0.15 COCINA BAÑO BAÑO DORMITORIO BAÑO COMEDOR SALA DORMITORIO DORMITORIO ESTAR TV N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 PATIO N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 COCINA BAÑO BAÑO DORMITORIO BAÑO COMEDOR SALA DORMITORIO DORMITORIO ESTAR TV PATIO LAVANDERIA AZOTEA - TENDAL AZOTEA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 A 5 5 B C B F G H A B C B F G H 1 1 2 3 1 2 3 A B C B F G H 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 1 2 3 A B C B F G H B C B F G H A LAMINA: VIVIENDA MULTIFAMILIAR ARQUITECTURA PROYECTO: PLANO: PROFESOR: CURSO: ALUMNO GONZALES JESUS RICHARD MANOLO ESCUELA ACADEMICO PROFESIONAL DE INGENIERIA CIVIL UNIVERSIDAD NACIONAL "HERMILIO VALDIZAN" ARQ. VICTOR GOICOCHEA VARGAS CONSTRUCCION I FECHA ESCALA: INDICADA 26/03/10 DIBUJO: A-1 R.G.J. 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 LAMINA: VIVIENDA MULTIFAMILIAR PROYECTO: PLANO: PROFESOR: CURSO: ALUMNO GONZALES JESUS RICHARD MANOLO ESCUELA ACADEMICO PROFESIONAL DE INGENIERIA CIVIL UNIVERSIDAD NACIONAL "HERMILIO VALDIZAN" ARQ. VICTOR GOICOCHEA VARGAS CONSTRUCCION I FECHA ESCALA: INDICADA 26/03/10 DIBUJO: A-2 R.G.J. ELEVACIONES-CORTES 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 ETERNIT N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 1 2 3 4 5 6 7 8 9 10 12 13 14 15 16 11 33 34 35 36 37 38 39 40 41 42 44 45 46 47 48 43 49 50 51 52 53 54 55 56 57 58 60 61 62 63 64 59 17 18 19 20 21 22 23 28 29 30 31 32 27 V1 1.0 2.3 1.2 V1 1.0 2.3 1.2 V2 1.0 1.85 1.2 V2 1.0 1.85 1.2 V1 1.0 2.3 1.2 V1 1.0 2.3 1.2 V3 1.0 1.6 1.2 V4 2.0 0.6 0.25 V4 2.0 0.6 0.25 V4 2.0 0.45 0.25 V1 1.0 2.3 1.2 V2 1.0 1.85 1.2 V2 1.0 1.85 1.2 V4 2.0 0.6 0.25 V4 2.0 0.6 0.25 V4 2.0 0.45 0.25 V5 1.0 2.5 1.2 V6 1.0 1.7 1.2 V6 1.0 1.7 1.2 V6 1.0 2.3 1.2 V6 1.0 1.55 1.2 V1 1.0 2.3 1.2 V2 1.0 1.85 1.2 V2 1.0 1.85 1.2 V4 2.0 0.6 0.25 V4 2.0 0.6 0.25 V4 2.0 0.45 0.25 V5 1.0 2.5 1.2 V6 1.0 1.7 1.2 V6 1.0 1.7 1.2 V6 1.0 2.3 1.2 V6 1.0 1.55 1.2 N.P.T. +8.55 N.P.T. +8.55 N.P.T. +8.55 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.0 0.8 P2 2.0 0.8 P2 2.0 0.8 P2 2.0 0.8 P2 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P3 0.6 0.6 P4 2.0 0.9 P5 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.0 0.8 P2 2.0 0.8 P2 2.0 0.8 P2 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P5 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.2 1.0 P1 2.0 0.8 P2 2.0 0.8 P2 2.0 0.8 P2 2.0 0.9 P3 2.0 0.9 P3 2.0 0.9 P5 2.2 1.0 P1 A A A A A A A A A A A A A A A A A A 2.10 0.9 P4 A A A A A A A A 5 5 5 5 5 5 5 5 5 5 \W2;\L\C0;DISTRIBUCION EN PLANTA 2º PISO^J\H0.83333x;\W1.1;\l\C1;ESC. 1/50 5 5 5 5 5 5 5 5 5 5 5 5 5 5 \W2;\L\C0;ELEVACION PRINCIPAL^J\H0.85713x;\W1.1;\l\C1;ESC. 1/50 \W2;\L\C0;CORTE A-A \H0.85714x;\W1.1;\l\C1;ESC. 1/50 \W2;\L\C0;CORTE B-B \H0.85714x;\W1.1;\l\C1;ESC. 1/50 \W2;\L\C0;DISTRIBUCION EN PLANTA 1º PISO^J\H0.83333x;\W1.1;\l\C1;ESC. 1/50 N.P.T. +0.00 \W2;\L\C0;DISTRIBUCION EN PLANTA 3º PISO^J\H0.83333x;\W1.1;\l\C1;ESC. 1/50 \W2;\L\C0;DISTRIBUCION EN PLANTA AZOTEA^J\H0.83333x;\W1.1;\l\C1;ESC. 1/50 COCINA N.P.T. +0.15 DORMITORIO N.P.T. +0.15 PATIO BAÑO BAÑO N.P.T. +0.15 BAÑO N.P.T. +0.15 DORMITORIO N.P.T. +0.15 BAÑO N.P.T. +0.15 COCINA DORMITORIO N.P.T. +2.95 BAÑO DORMITORIO BAÑO COCINA DORMITORIO BAÑO BAÑO DORMITORIO BAÑO N.P.T. +2.95 LAVANDERIA N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +2.95 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +5.75 N.P.T. +8.55 DORMITORIO N.P.T. +0.15 DORMITORIO DORMITORIO N.P.T. +2.95 N.P.T. +5.75 BAÑO N.P.T. +0.15 BAÑO BAÑO N.P.T. +2.95 N.P.T. +5.75

Language	Spanish
Drawing Type	Full Project
Category	Condominium
