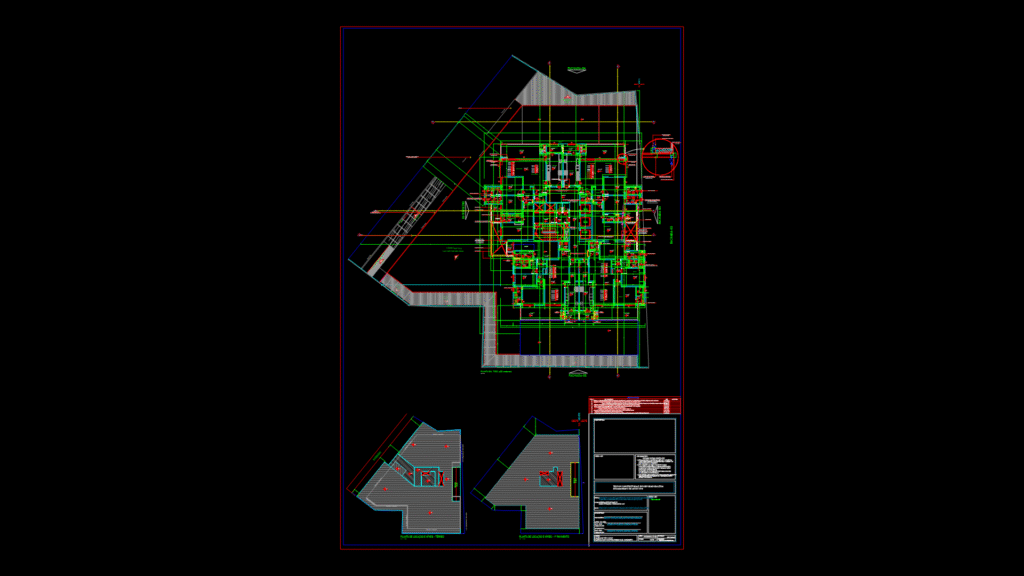

Comprehensive architectural plan for a luxury multifamily residential tower with 23 floors (including ground floor). This drawing features detailed floor plans for typical apartment units with four units per floor (labeled as Apt. 1-4). Each apartment includes a suite master with closet and bathroom, secondary suites, living/dining area, kitchen, service area, and balconies with glass guardrails.
Key specifications include:
– Building Height: 23 floors with consistent floor plans from the 4th to 23rd level
– Structural System: Reinforced concrete with columns identified in the range of 30-60cm dimensions
– Unit Features: Each apartment contains 2-3 bedrooms, 2-3 bathrooms, integrated living/dining spaces, and outdoor balconies
– Amenities: Building includes air conditioning condensers, dumbwaiter system for waste disposal, and fire safety systems
The drawing shows both typical floor plans and location/elevation plans for the building, incorporating natural lighting considerations and optimized space distribution. Detailed structural elements include concrete columns, beams, and wall specifications.
