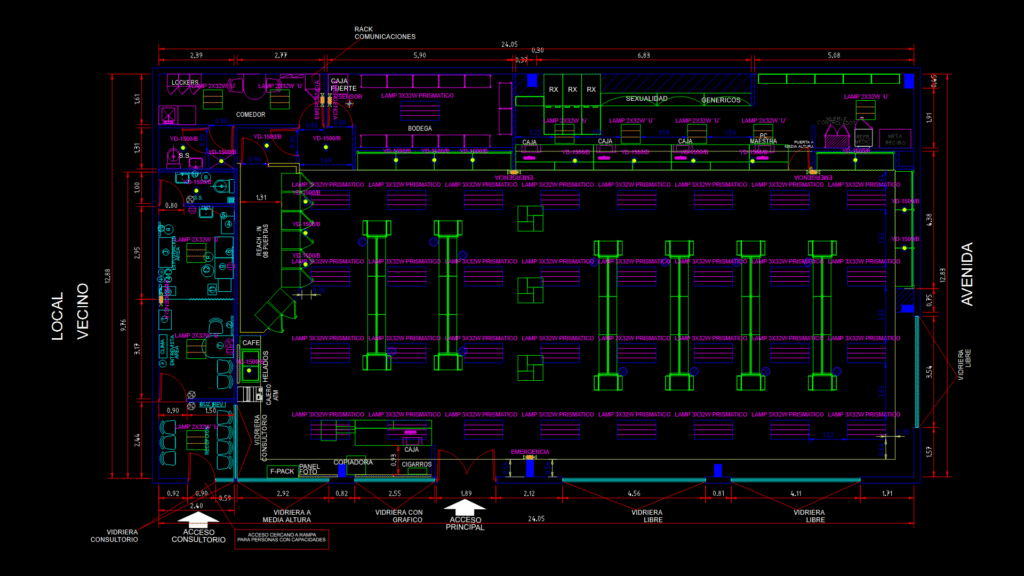

Detailed floor plan for a Benavides pharmacy retail location with integrated lighting system layout. This 292 m² facility incorporates a main retail sales area with gondola shelving, refrigerated display cases (including an 8-door reach-in cold room), checkout counters with 4 POS stations, and separate consultation areas. The lighting system features a grid of 3x32W prismatic fluorescent fixtures throughout the sales floor and 2x32W ‘U’ fixtures in service areas. The layout includes designated zones for generics, sexual health products, and pharmacy services with a secured controlled substances storage. Support spaces include staff areas (locker room, break room), back-of-house storage, and technical rooms. The plan shows multiple access points including a main entrance and an accessible entrance with proximity to a ramp for persons with disabilities. Display vitrines are positioned strategically around the perimeter, with merchandise areas organized by product category. Electrical components such as emergency lighting, sensors, and communications rack are clearly indicated.
Pharmacy Floor Plan with Integrated Lighting System for Los Portales
