Rebuild layout for Zanders Aqua Kraft paper machine PM3

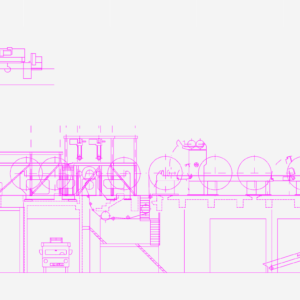

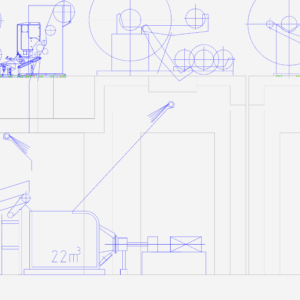

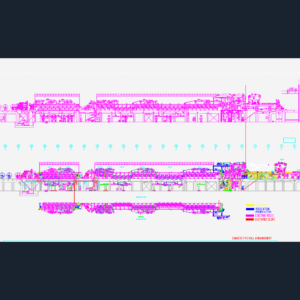

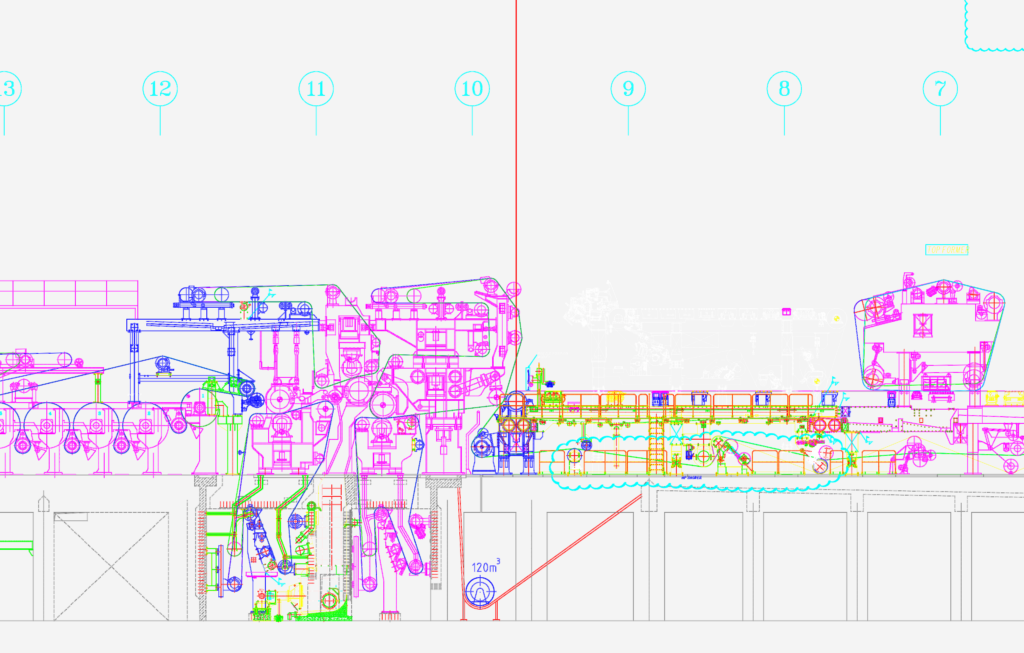

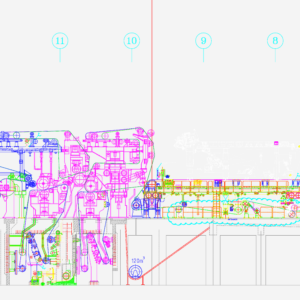

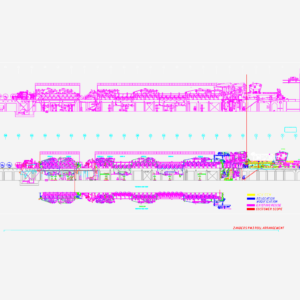

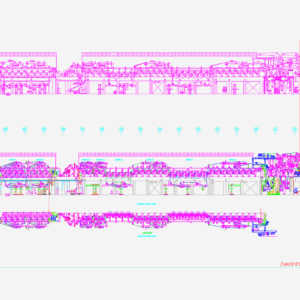

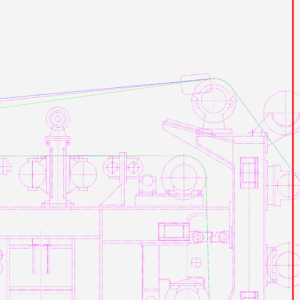

Rebuild layout for Zanders PM3 paper machine incl. forming section, tri-nip press, and 1G-7G dryer groups. Includes roll arrangement for 782 MTPD capacity at 1,200 m/min max speed

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
English
Materials
Steel, Concrete
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Uploaded by
CAD Corner
Category
Commercial, Industrial
Published
Jun 3, 2026
Price $15.00
