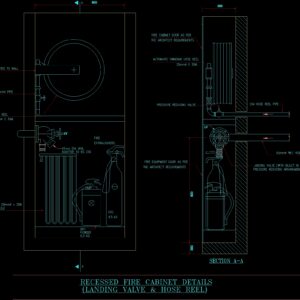

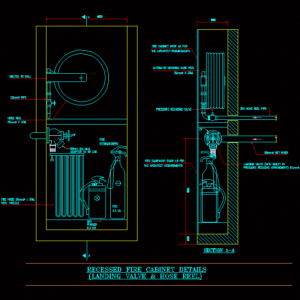

RECESSED FIRE CABINET DETAILS

Drawing labels, details, and other text information extracted from the CAD file:

valve hose, recessed fire cabinet details, section, pressure reducing, landing valve builet in, the architect requirements, fire cabinet door as per, automatic swinging hose reel, hose reel pipe, pressure reducing valve, extinguishers, fire, adapter to bs, dia mail, the architect requirements, fire equipment door as per, bolted to wall, pipe, hose reel, wet riser, dry, powder, with nozzle, fire hose, n.t.s, n.t.s, general legends, fire fighting, details, schematic diagram, fire fighting

Raw text data extracted from CAD file:

(LANDING VALVE & HOSE REEL) RECESSED FIRE CABINET DETAILS SECTION A-A PRESSURE REDUCING ARRANGMENT) 65mmd LANDING VALVE (WITH BUILET IN 350 25mmd X 30M. 800 THE ARCHITECT REQUIREMENTS FIRE CABINET DOOR AS PER AUTOMATIC SWINGING HOSE REEL 25d HOSE REEL PIPE PRESSURE REDUCING VALVE LV EXTINGUISHERS FIRE LV ADAPTER TO BS 336 65mm DIA MAIL THE ARCHITECT REQUIREMENTS FIRE EQUIPMENT DOOR AS PER BOLTED TO WALL 25mmd PIPE HOSE REEL 25mmd X 30M. A 65mmd WET RISER 800 300 4.5 kG DRY POWDER 6.0 KG CO2 A WITH NOZZLE FIRE HOSE 65mmd x 30M. N.T.S FF-104 N.T.S FF-105 GENERAL NOTES, LEGENDS & FIRE FIGHTING DETAILS SCHEMATIC DIAGRAM FIRE FIGHTING
