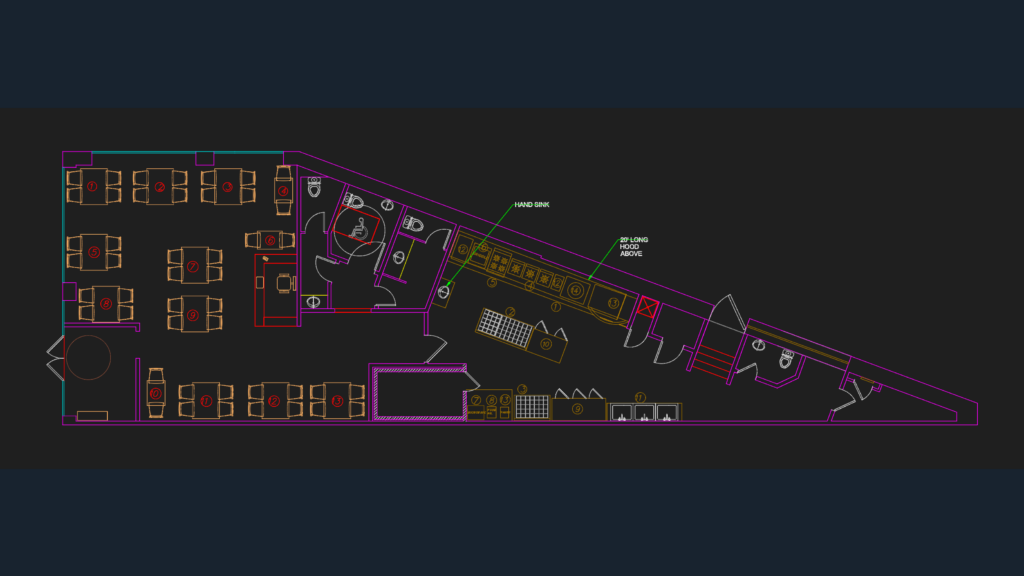

Commercial kitchen and dining floor plan for a restaurant fit-out in .dwg format. Includes a 20′ exhaust hood above the cook line, sandwich prep stations (48″ and 72″ units), and seating for approx. 50 patrons. Drawings cover ADA-compliant restroom specs and BOH utility areas for easy MEP coordination in AutoCAD.
Restaurant floor plan with commercial kitchen and equipment layout
