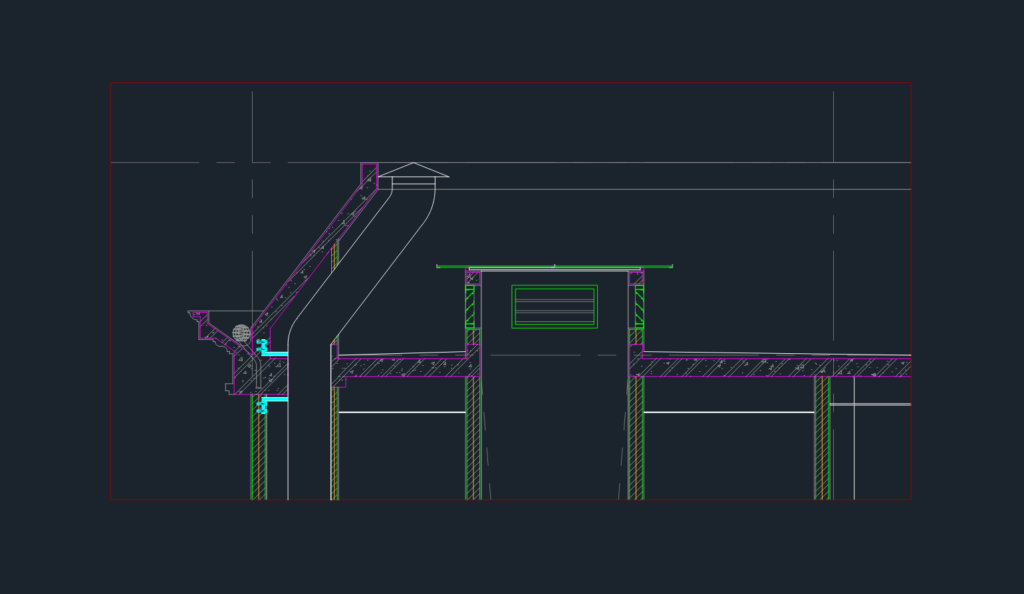

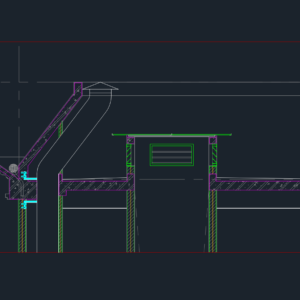

Floor plans for hotel levels 1 through 4. Level 1 footprint 543.6 m2. Includes motorbike ramp, lift lobby and accessible bathroom layouts. Specs for grnite cladding and 800×800 ceramic tiles. Detailed section 1-1 and canopy/awning assemblies provided. Includes service shaft (hộp gen) and stair details. RC wall and masonry construction notes. Metric units. Mặt bằng kiến trúc khách sạn Rosa Alba.
Rosa Alba Hotel Architectural Layout Levels 1-4
