Serviced Apartment and Commercial Suite Typical Unit Layout Plans

Name: Serviced Apartment and Commercial Suite Typical Unit Layout Plans
Brand: Designs CAD
SKU: 841837
Price: 4.49 USD
Availability: InStock

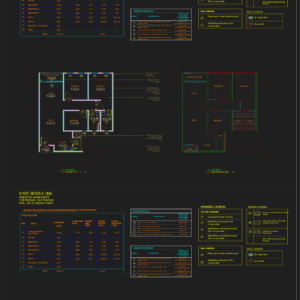

3-bedroom serviced apartment unit floor plans and reflected ceiling plans with material legends and door schedules.

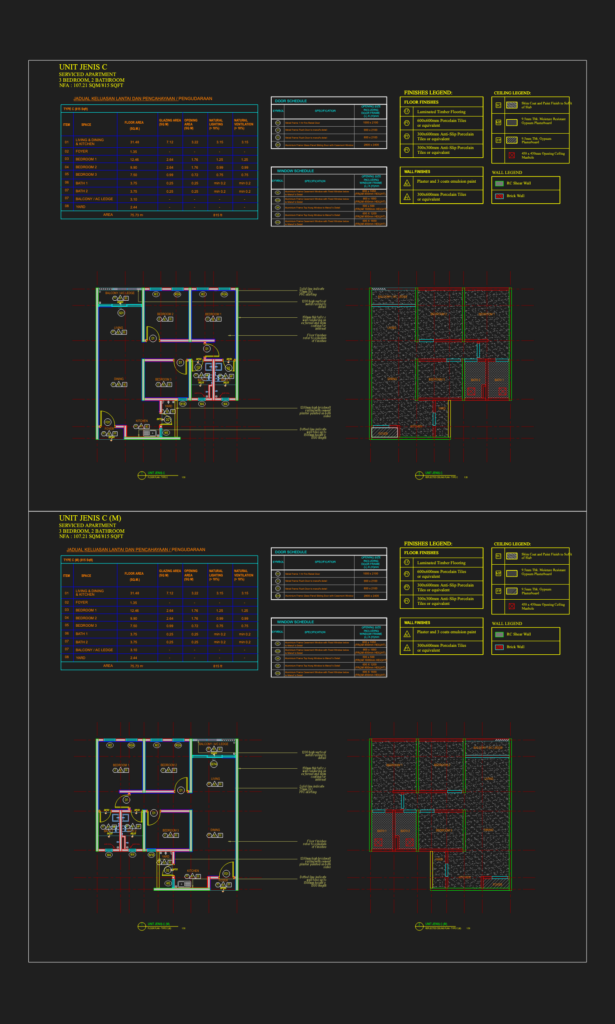

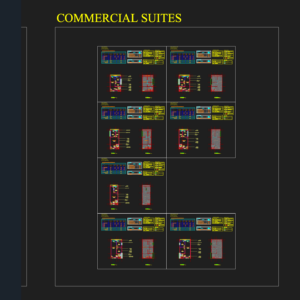

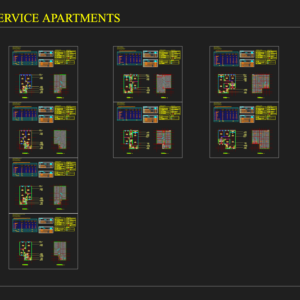

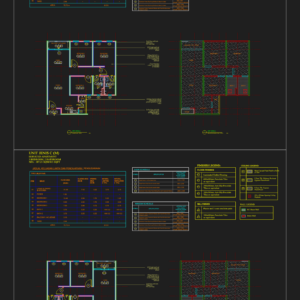

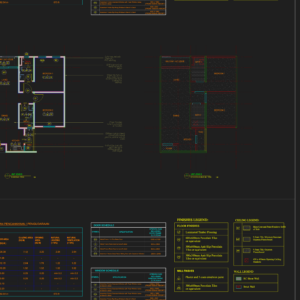

Floor plans & reflected ceiling plans for 1-3 bedroom units and commercial suites. Includes finishes legend, door schedules, and window schedules

PREMIUM

File Details

File Type: DWG
Type: Full Project
Language: English
Materials: Concrete, Masonry, Wood, Steel, Glass, Plastic
Units: Metric
Area: 1000 – 2499 m² (10763.9 – 26899.0 ft²)
Features: A/C, Deck / Patio, Parking
Uploaded by: DWG Master
Category: Apartment, Residential
Published: May 24, 2026

Price $4.49

or get unlimited access from $7/mo

Tags

#1bhk 2bhk 3BHK architecture ceiling plan commercial suite door schedule floor plan Layout Plan residential serviced apartment typical unit window schedule
