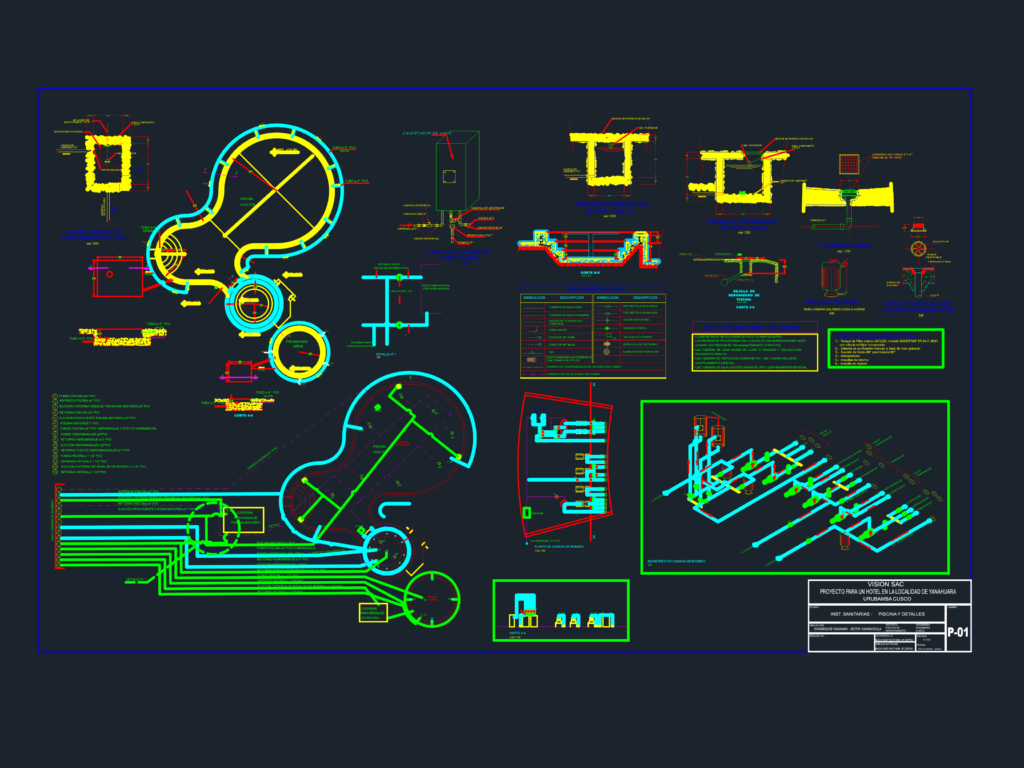

Sanitary layout for a hotel pool complex including adult, children, and hydromassage zones. Features pump room isometric, Jacuzzi ST-24-7 filter specs, gas water heater details, and compensation tank sections. All pipe runs marked PVC C-10 with fittings/valves shown. Incl. legends for suction, rturn, and drainage. Instalaciones sanitarias para piscina de hotel: detalles de patera, hidromasaje y cuarto de bombas.
Swimming Pool Sanitary Details with Jacuzzi Filter
