Traditional Portuguese 2 Storeys House 2D DWG Full Project For AutoCAD

Name: Traditional Portuguese 2 Storeys House 2D DWG Full Project For AutoCAD
Brand: Designs CAD
SKU: 141309
Availability: InStock

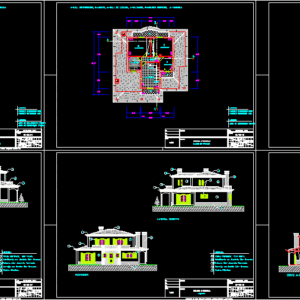

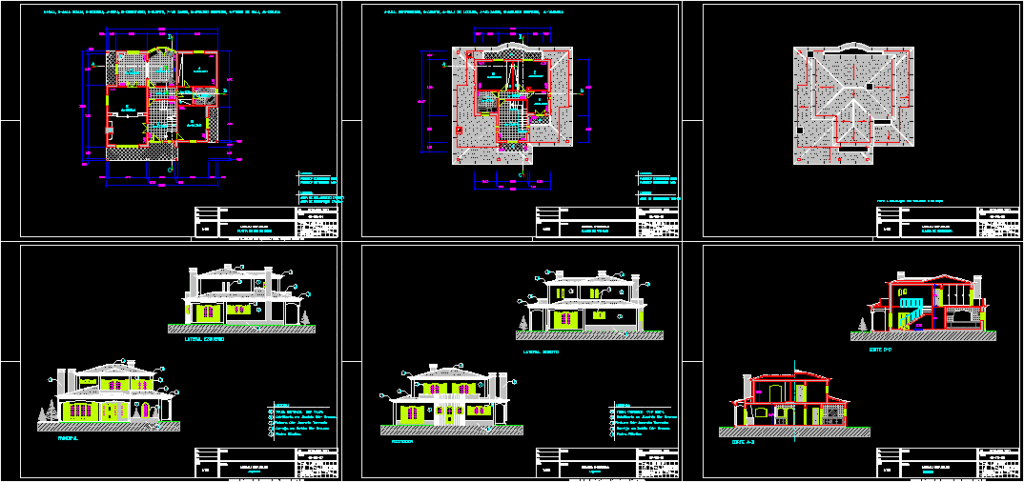

Traditional Portuguese 2 storeys house with pitched roofs, and designed with 4 bedrooms, master bedroom, 2 bathrooms, living and dining room, kitchen, patio, and porch. Drawings include Architectural plans, elevations, and sections.

FREE

File Details

File Type: DWG
Type: Full Project
Language: Portuguese
Materials: Concrete, Masonry
Units: Metric
Area: 50 – 149 m² (538.2 – 1603.8 ft²)
Features: Deck / Patio
Uploaded by: Shane_CAD
Category: House
Published: Dec 7, 2016

Download faster, ad-free, with more daily files from $7/mo

Tags

2d 2d elevation drawing architecture autocad cuts and facades dwelling unit DWG full project home house Housing patio Porch residential single family residence villa
