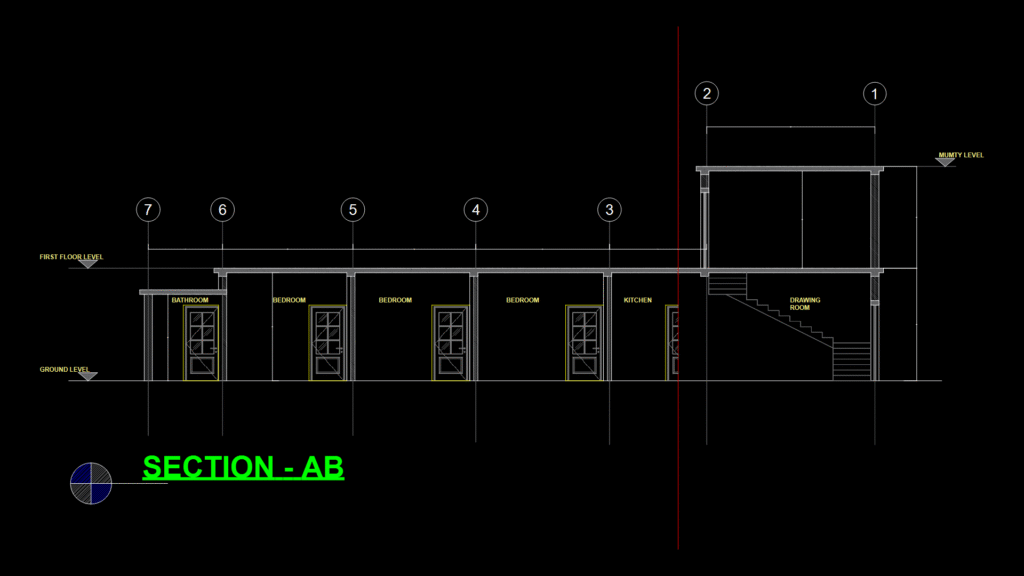

This residential building section drawing depicts a two-story house with a third mumty level for roof access. The ground floor features a drawing room with an open staircase on the right side, alongside a kitchen. The first floor contains three bedrooms and a bathroom arranged linearly. The section clearly shows the vertical circulation with stairs connecting all three levels. Standard-sized windows are shown for each room with consistent dimensions and detailing. The drawing uses imperial measurements, with column spacing varying between 6′-11″ to 15′-7″, and includes structural elements like floor slabs and load-bearing walls. The building demonstrates a practical spatial organization with service areas centralized and bedrooms positioned for privacy. The mumty level provides rooftop access, a common feature in residential designs for hot climates where roof terraces are utilized for evening activities.
Two-Story Residential Section AB with Mumty Level Roof Access
