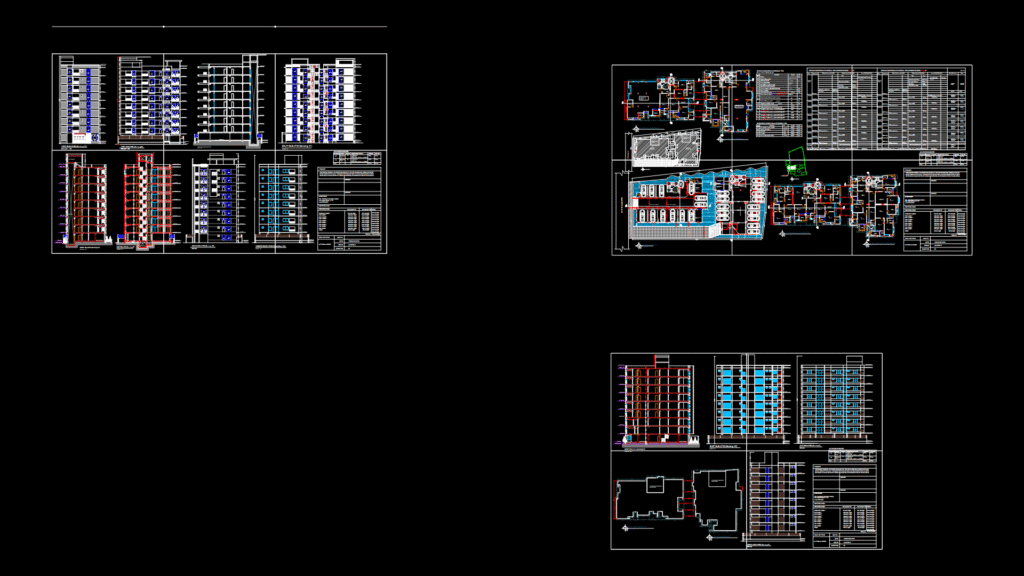

Comprehensive architectural drawing set for a 9-story apartment complex consisting of two buildings (Building-01 and Building-02) with a total of 26 residential units. The project, located at Paribagh, Dhaka, features a total floor area of approximately 6,158 sq.m. The plans detail a G+8 configuration with various unit types ranging from 140-200 sq.m per apartment. Each building includes dedicated lift cores, fire safety provisions, and utility rooms. The ground floor incorporates parking areas, guard rooms, and electromechanical spaces, while upper floors contain residential units with balconies. The drawings include all four elevations for each building, sections (A-A’ and B-B’), floor plans (1st-8th), roof plans, and a detailed site layout showing the relationship between buildings and surrounding infrastructure. Notable technical elements include fire-protected doors, underground water reservoirs, overhead water tanks, and lift machine rooms. The project adheres to local building codes with FAR calculations showing compliance with Bidhimala-2008 regulations.
9-Story Dual Building Apartment Complex Plans and Elevations
