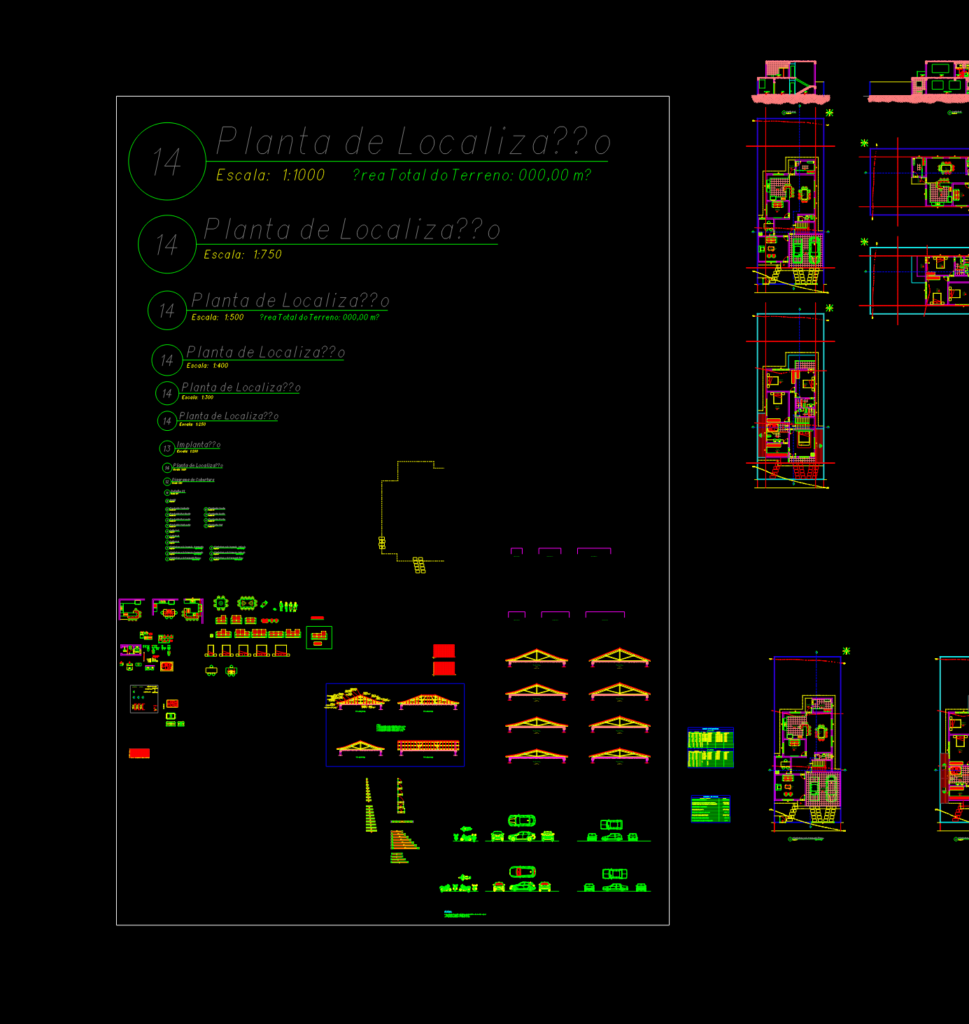

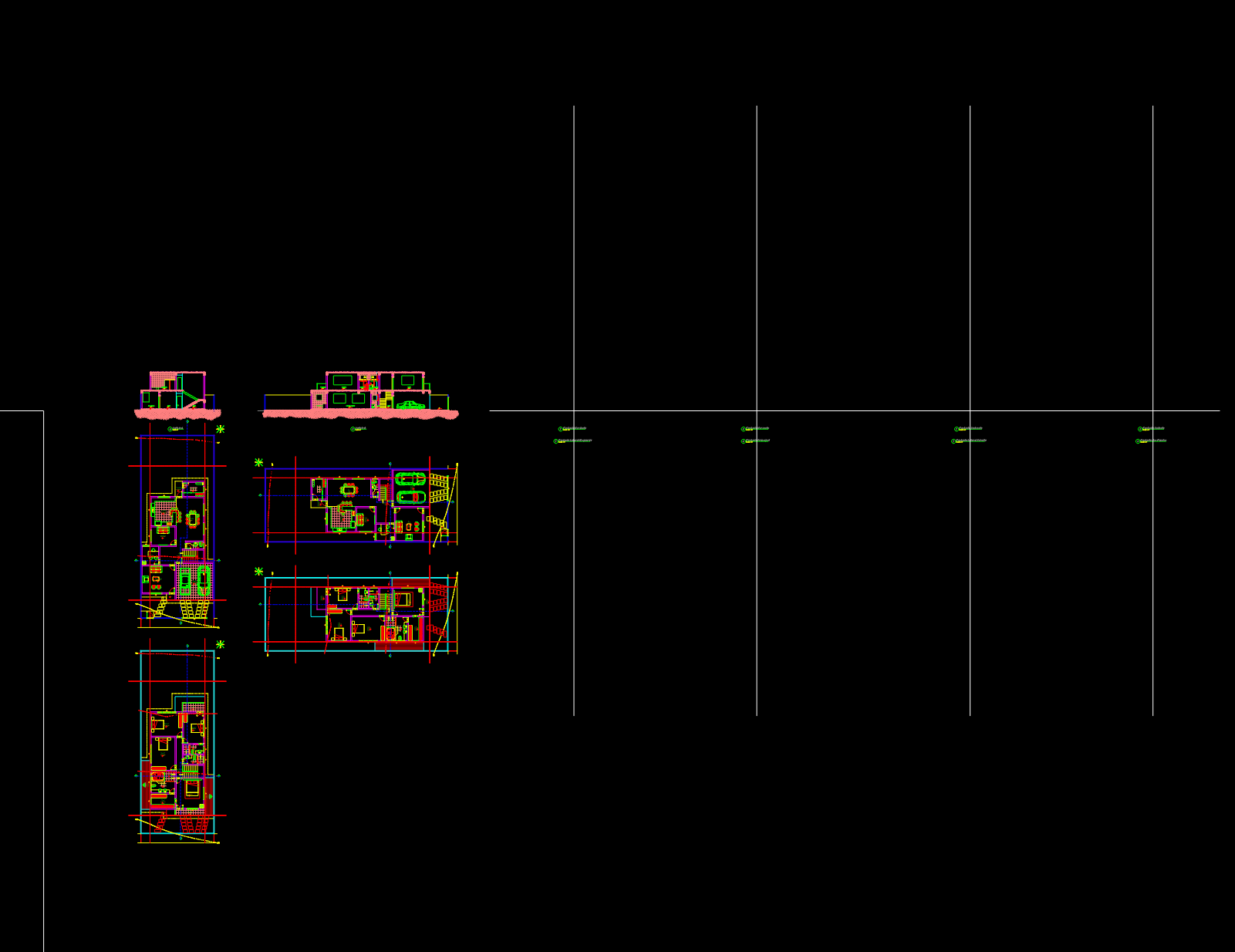

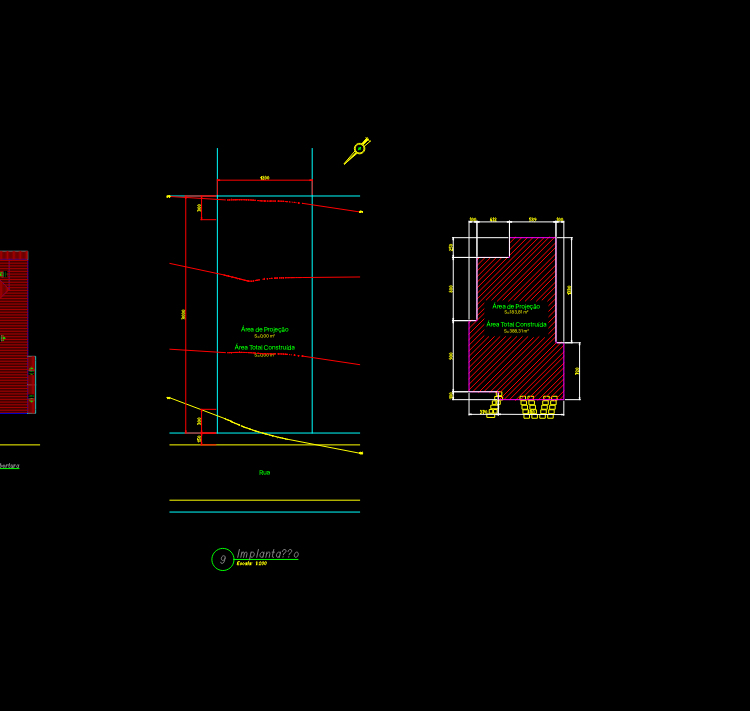

Full architectural set for a multi-level house project. Includes floor plans for the subfloor, ground floor and upper levels. I’ve included detailed sections (A-A, B-B, C-C) and all elevations. The roof details are quite specific—covers wood truses for spans of 7.5m and 10m, detailing members like rafters, purlins, and plates with member sizes (12x8cm, 7x4cm). Also features a door and window schedule and site location plans at several scales from 1:1000 to 1:250. Ground floor includes a 36m² garage, living areas, and kitchen while upper floors have suites and balconies. Dims are in meters per NBR 6492. Projeto arquitetônico completo: plantas, cortes, fachadas e detalhamento de telhado.
Complete residential house project with floor plans, sections, and roof details
