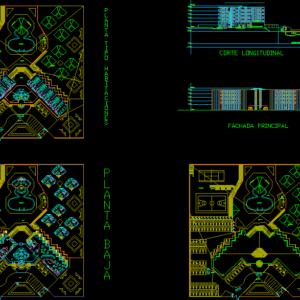

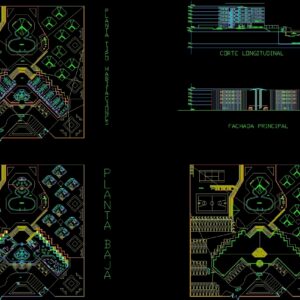

PROPOSAL FOR ENTREPROSING TOURISM; TO IMPROVE THE LODGING IN THE TOURIST ZONE OF CATAMARCA; LOCATED IN WEST OF THE PROVINCE; THE PROJECT INCLUDE A BUILDING WITH 4 LEVELS TO LIVEAND APARTMENTA LIKE CABINS; IN GROUNF FLOOR OF MAIN BUILDING ARE THE LOGISTIN AREA AND A RESTAURANT.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cong., warehouse, refrigerator, kitchen, private, security, box, general manager, reception, toillet, dead, file, interviews, human, resources, counter, boardroom, restaurant, men, sanitary, women, winery, dining room employees, bathroom women, laundry, laundry, general workshop, warehouse, control employees, men bathroom, carpentry, electricity, lobby, mini-supermarket, pool, games, children, bar, courts, vacuum, gazebo, longitudinal section, portico, terrace, outdoor hall, sports courts, access to the beach, beach, main facade

Raw text data extracted from CAD file:

XXX+0000.00 CONG. s BODEGA REFRI COCINA PRIVADO SEGURIDAD CAJA DE DIRECTOR GENERAL PRIVADO RECEPCION TOILLET MUERTO ARCHIVO ARCHIVO ENTREVISTAS PRIVADO HUMANOS RECURSOS CONTADOR SALA DE JUNTAS RESTAURANTE HOMBRES SANITARIO MUJERES SANITARIO BODEGA GRAL comedor empleados Baño mujeres roperia Lavandería taller general Almacén control empleados baño hombres Carpintería Electricidad NPT-0.90 NPT-.45 NPT-0.45 NPT-3.78 NPT+0.60 NPT+0.60 NPT+0.60 NPT-12.24 NPT+0.60 NPT-0.90 LOBBY MINISUPER ALBERCA JUEGOS INFANTILES BAR CANCHAS NPT-0.90 NPT-3.78 NPT+0.60 NPT+0.60 NPT-12.24 NPT+0.60 NPT-0.90 LOBBY ALBERCA JUEGOS INFANTILES CANCHAS s b vacío MIRADOR vacío vacío vacío vacío vacío P L A N T A T I P O H A B I T A C I O N E S P L A N T A B A J A CORTE LONGITUDINAL N.P.T.-2.88 N.P.T.-0.72 N.P.T.±0.00 N.P.T.+4.32 N.P.T.+7.02 N.P.T.+9.72 N.P.T.+12.42 N.P.T.+15.12 N.P.T.+16.43 N.P.T.-15.00 N.P.T.-12.24 PÓRTICO LOBBY TERRAZA VESTÍBULO EXTERIOR ALBERCA BAR CANCHAS DEPORTIVAS ACCESO A LA PLAYA PLAYA N.P.T.+12.42 N.P.T.+16.43 N.P.T.±0.00 N.P.T.+4.32 N.P.T.+7.02 N.P.T.+9.72 N.P.T.+15.12 FACHADA PRINCIPAL NPT-0.90 NPT-3.78 NPT+0.60 NPT+0.60 NPT-12.24 NPT+0.60 ALBERCA JUEGOS INFANTILES CANCHAS vacío vacío vacío vacío P L A N T A D E T E C H O S
