Hotel Matilda First Floor Plan DWG with Bar and Guest Rooms

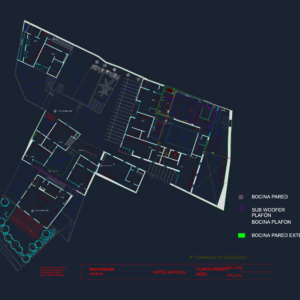

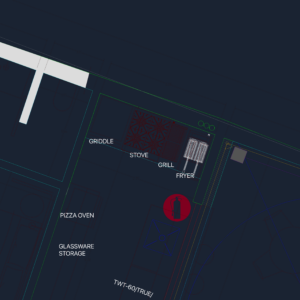

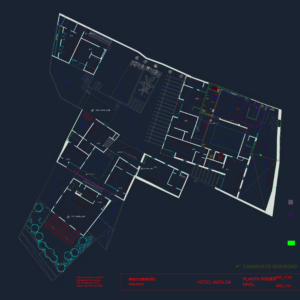

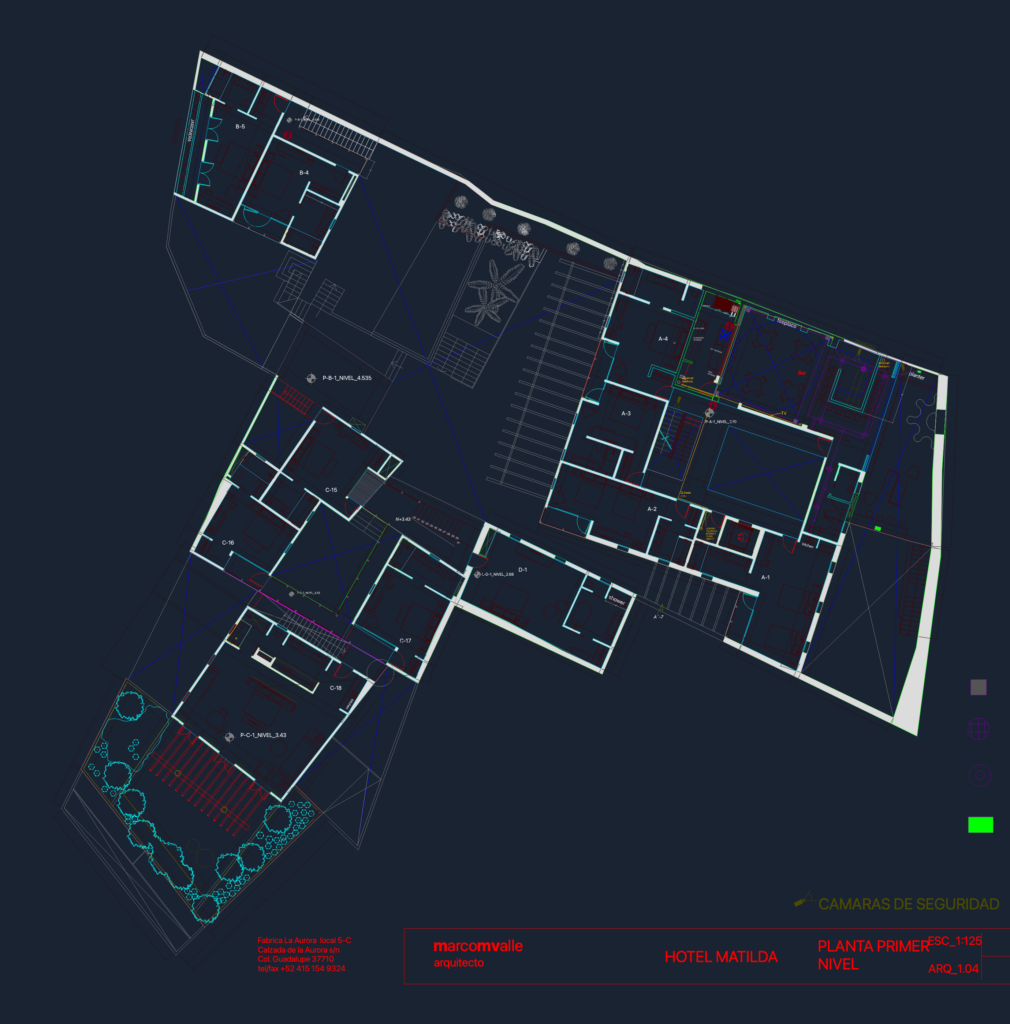

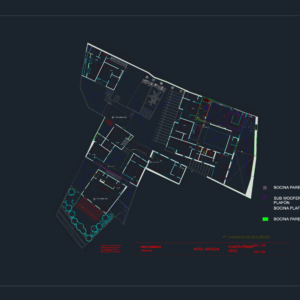

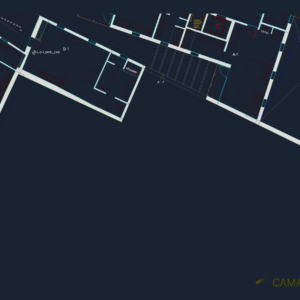

First level floor plan for Hotel Matilda in San Miguel de Allende. Covers the main bar zone plus guest suites across several wings (A-D blocks). Includes detailed layouts for the bar and kitchen—specifically calling out the pizza oven, fryers, griddles, and storage areas. You’ve also got the full audio and security camera system mapped out, inclyding wall-mounted and ceiling speakers. Scale is 1:125 and units are metric.
