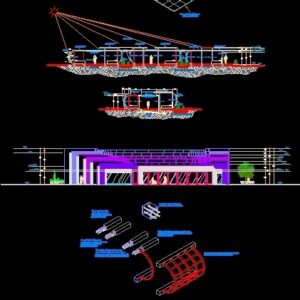

Isometric Thesis Hospital Luis DWG Block for AutoCAD

File that displays isometric view different areas and construction elements of a psychiatric hospital.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

block a, internal green area, block b, block c, indirect natural light, reinforced concrete slab, translucent corridor, metal column, concrete column, cylinders, translucent, support, steel, roofing proposal, for stair shelter, steel plates, with proposal of translucent cylinders., proposal of mosaic, dividing curtain between, rooms., and step of the personnel., proposal of stairs, marinera type for access, to the roof, proposal of shelter, of medical material type, locker., npt, section bb, plant, section aa, both directions, metal column, anchors, grill inf., grid sup., sewer pipe, cushion proposal, anti-shock, mosaic proposal, steel supports, subject to wall, for anchor cushions., rubber cushion, redecorated, with joists, steel for anchoring in walls., safe steel, sealed in joist, for support anchor., reinforced steel plate, to be embedded in the trabe., process of casting, for support anchor, beam steel, plate inlay, on the eight rods of the trabe, adding mixture in the inside, mixed in the second space, separated from the plate with plug, steel and subtractions for screws, of curved support of steel for cells., positioning of curved support of steel, reinforced once the plate has already set, inside the trabe., placement of supports of curved steel, with welded horizontal beams., cover of polycarbonate, with texture, and color smoke., metal panel, reinforced steel, anchored to concrete, anchoring panels, by means of nut type, curved beam of steel, reinforced and of length, lock godmother, reinforced steel, embedded in metal panels.

Raw text data extracted from CAD file:

Language Spanish
Drawing Type Block
Category
Additional Screenshots
File Type dwg
Materials Concrete, Steel, Other
Measurement Units Metric
Footprint Area
Building Features
Tags , , , , , , , , , , , , , , , , , , ,
