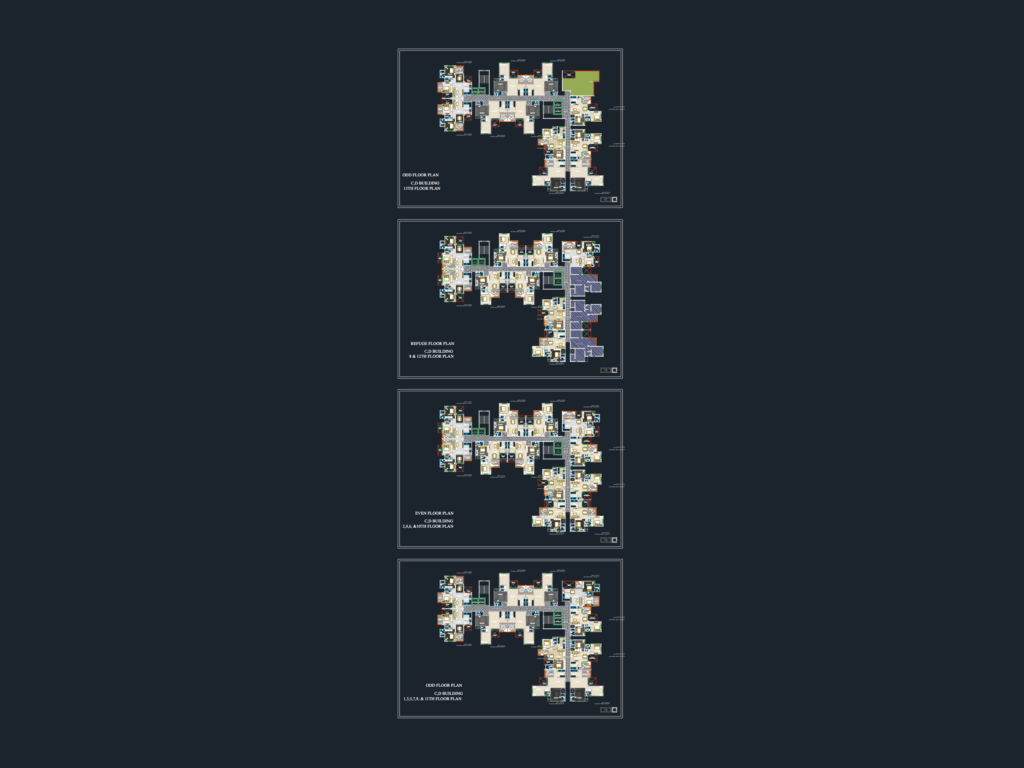

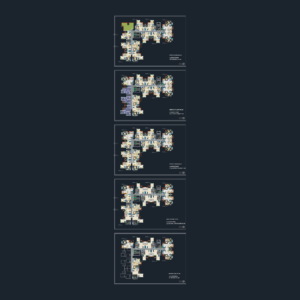

all floor plans for a 4-building residential development, buildings A thru D. spans ground floor commercial/shops up to 14 residential storeys. incl. detailed layouts for odd & even floor plates, 1st floor, & refuge levels (8th/12th). 6 types of 2BHK units included with saleable areas from 924-1114 sq. ft. approx. room dims are feet/inches (eg 12’x18′ living) with 5′ passages and 8’3″ lift lobbies. refuge areas and amenity terraces are marked. good set for studying residential circulation & unit nesting etc.
Multi-Story Residential Apartment Complex Floor Plans Buildings A-D
