Nautical Club For Beach With Dimensions And Equipment DWG Section for AutoCAD

Nautical Club For Beach With Dimensions And Equipment DWG Section for AutoCAD

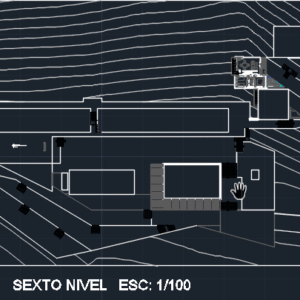

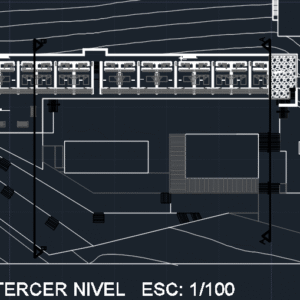

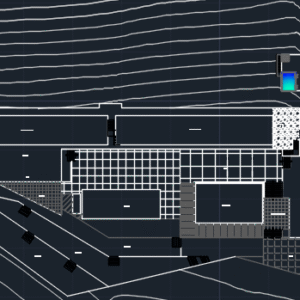

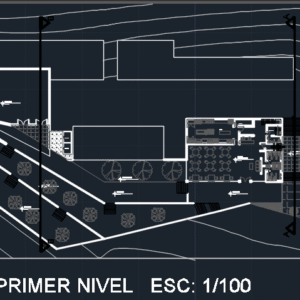

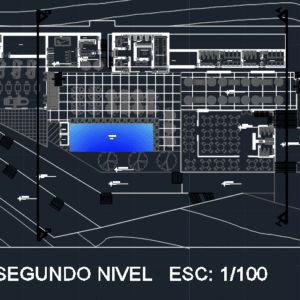

This is the design of a nautical activity center that has bungalows, kitchen, dining room, bathroom, restaurant, administrative areas, multipurpose room, swimming pool. This design includes section, floor plans, dimensions and equipment.

PREMIUM

File Details

File Type
DWG, ZIP
Type
Section
Language
Spanish
Materials
Concrete, Steel
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
Pool
Uploaded by
CAD Projects
Category
Hotel, Restaurants & Recreation
Published
Apr 5, 2017
Price $3.87
or

or get unlimited access from $7/mo

Tags

2d autocad bathroom beach bungalows CLUB Design dimensions Dining room DWG equipment Hotel inn kitchen multipurpose room nautical plant recreational resort Restaurant section sections swimming pool tourist resort villa
