Nursery, Infantile School, Pre School 2D DWG Plan for AutoCAD

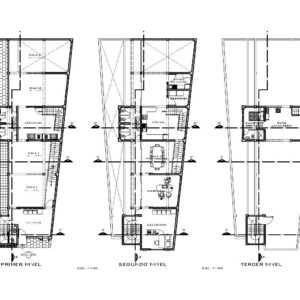

Plan and four side elevation of nursery. It has 3 levels – ground (primary) plus two levels 4 zones : educative administrative, services and didactic. It has outside gardening. And each area elevation and sectional details shown separately.Total foot print area of the plan is approximately 300 sq meters.

Language Spanish
Drawing Type Plan
Category

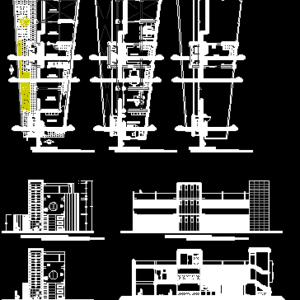

Additional Screenshots
File Type dwg
Materials Aluminum, Concrete, Glass, Masonry, Moulding, Plastic, Steel, Wood, Other
Measurement Units Metric
Footprint Area 250 - 499 m² (2691.0 - 5371.2 ft²)
Building Features A/C, Deck / Patio, Garden / Park
Tags , , , ,
