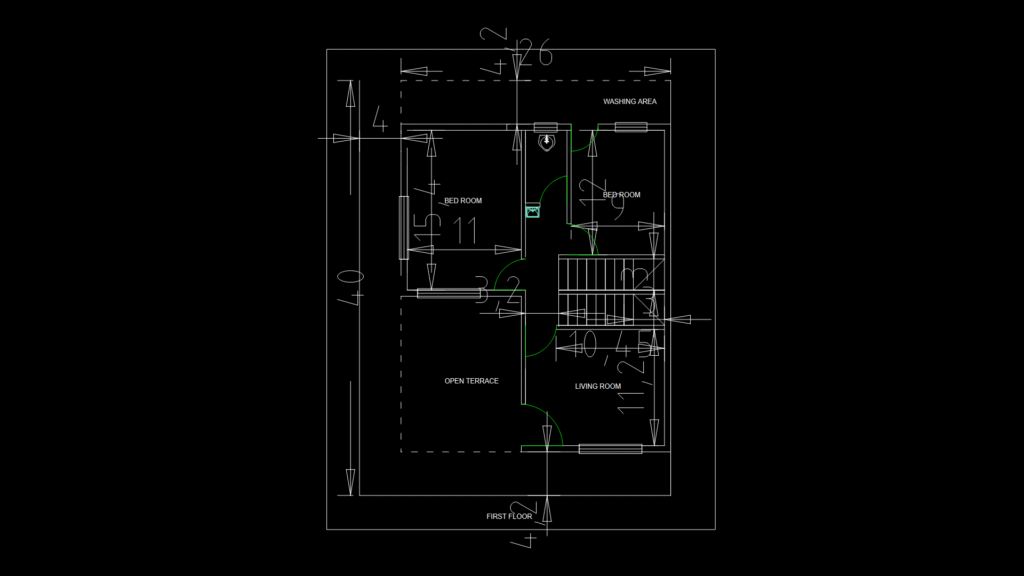

This first floor architectural plan illustrates a compact residential layout featuring dual bedrooms, a living room, washing area, and an open terrace. The floor measures approximately 15.4m x 10.45m with clearly defined circulation paths. The layout includes two bedrooms (one measuring 11.2m² and another adjacent to the washing area), a centrally positioned staircase providing vertical circulation, and a generously sized open terrace. The washing area includes a washbasin fixture and is positioned on the upper portion of the plan. Door swings are indicated with arcs showing circulation patterns between spaces. The design efficiently utilizes the available footprint with a logical flow between private and communal areas. The integration of an open terrace provides valuable outdoor living space, enhancing the floor’s functionality while maintaining privacy for the bedrooms. All dimensions are specified in meters, with room labels clearly indicating the intended use of each space.
Residential First Floor Plan with Open Terrace and dual Bedrooms
