Comprehensive Duplex Residence Layout

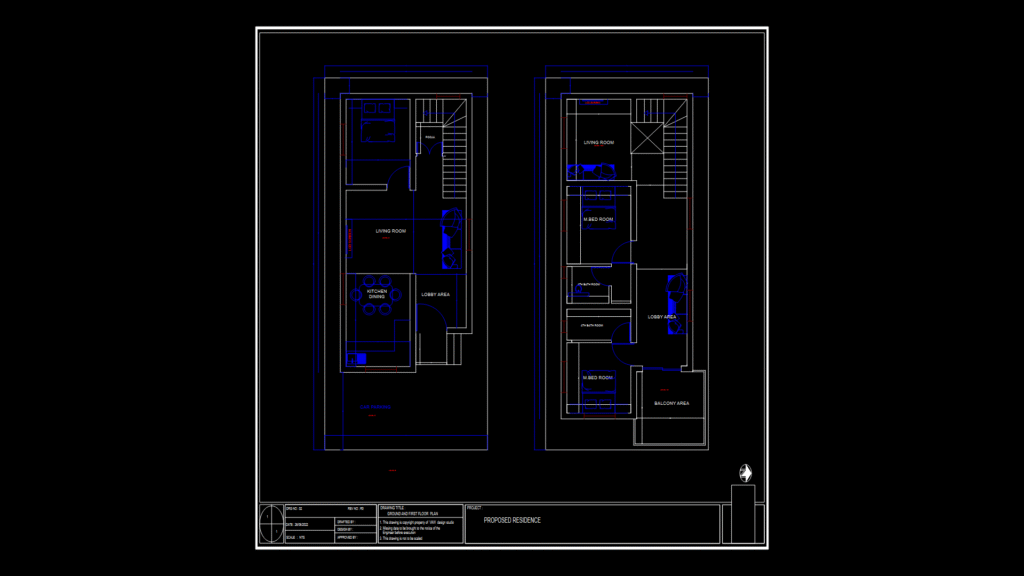

This architectural drawing presents ground and first floor plans for a contemporary two-story residence. The design features a functional layout with clear spatial organization across both levels.
Ground Floor Components:
– Spacious living room with furniture layout including a sofa placement
– Combined kitchen and dining area with a 36 x 72 inch dining set
– Dedicated pooja (prayer) room with custom door
– Lobby area providing circulation between spaces
– Car parking provision at the front of the property
– Main entrance door with direct access to lobby
First Floor Components:
– Two master bedrooms (labeled as M.BED ROOM) with attached bathrooms
– Secondary living room creating a multi-functional upper level
– Balcony area extending from one of the bedrooms
– Continued lobby space for circulation between rooms
– Staircase connecting both floors centrally positioned
The plan employs several thoughtful design considerations, particularly in the bathroom placements adjacent to bedrooms for improved plumbing efficiency. The vertical circulation is strategically positioned to minimize corridor space while maintaining proper flow between rooms. Floor level changes are indicated at key transition points (0′, 2′, 3′, and 10’6″), suggesting a split-level approach to maximize the available footprint.
