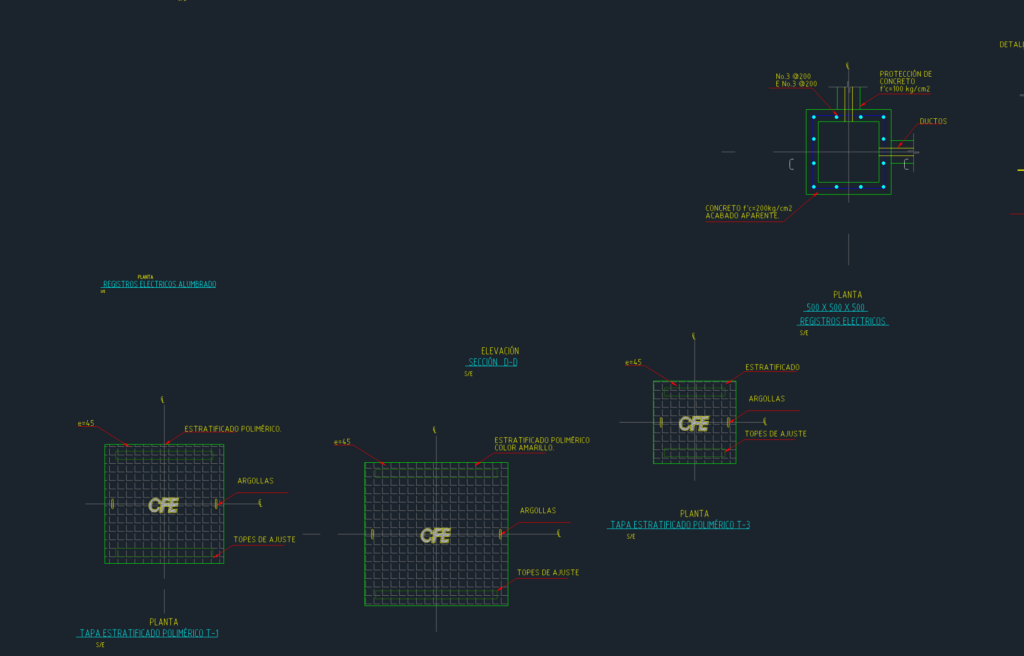

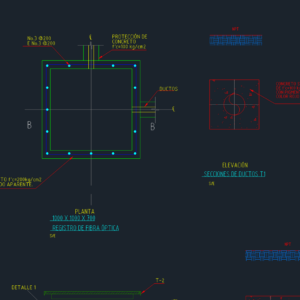

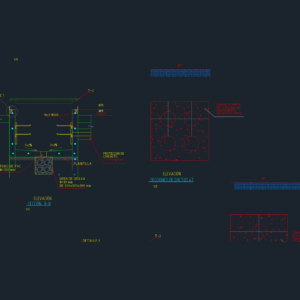

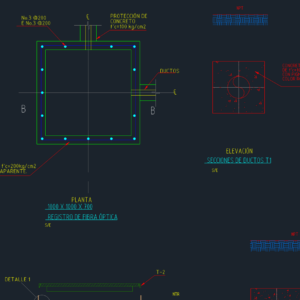

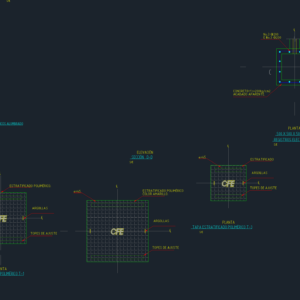

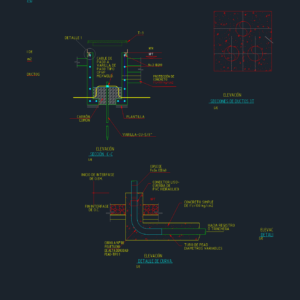

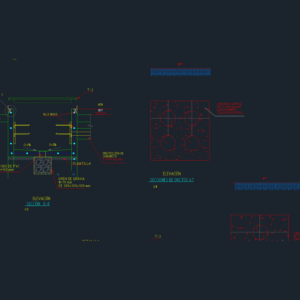

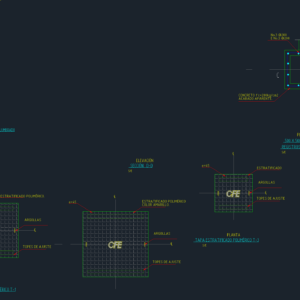

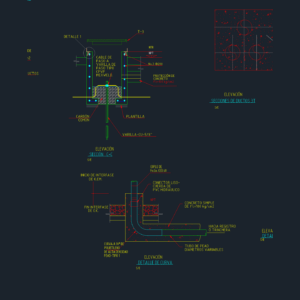

Electrical register and duct bank details for underground utilities. – Components: Lighting boxes, fiber optic registers, and T-1/T-3/T-4 polymer stratified covers. – Specs: f’c=200 kg/cm2 concrete for boxes; red-dyed f’c=100 kg/cm2 concrete for conduit encasement. – Details: Grounding w/ 5/8″ Cu rods, HDPE (PEAD) tubing, gravel drains, and rebar schedules (No.3 @ 200). – Views: Plans and sections for 1T-4T duct banks & various box sizes (500x500mm to 1000x1000mm). Planos de detalle para registros eléctricos y bancos de ductos subterráneos, incluyendo tapas poliméricas, armado de refuerzo y especificaciones de concreto.
Underground Electrical Register Boxes and Multi-Duct Bank Installation Details
