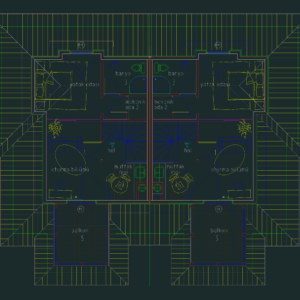

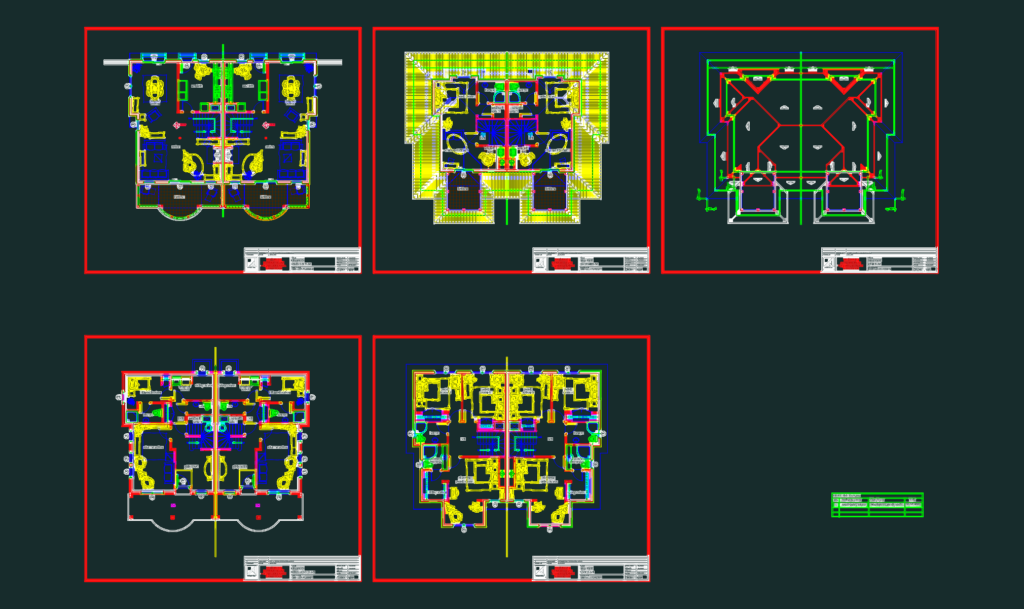

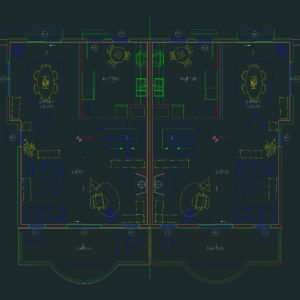

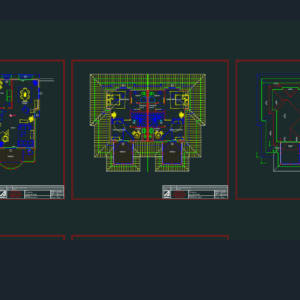

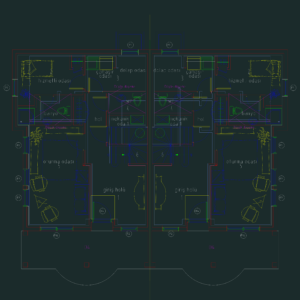

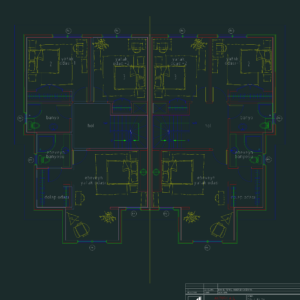

Full architectural drawing set for a semi-detached residential project in Kemerburgaz, covering blocks D3 and D4. We’ve included the basement, ground floor, first floor, attic, and a complete roof plan at a 1/50 scale. The layout covers everything from the main living areas and kitchens down to specific details like the laundry niche and master suites. Technical notes mention Andersen joinery and specific revision data from the constructin firm. Floor plans come fully furnished with blocks for seating, dining, and bedroom layouts. Ground floor handles the main entry and salon while upper levels are for the bedrooms. You can see the roof slopes and drainage on the final sheet. D3-D4 Blok Revizyon projesi.
Full Architectural Set for Semi-Detached Residential Villa
