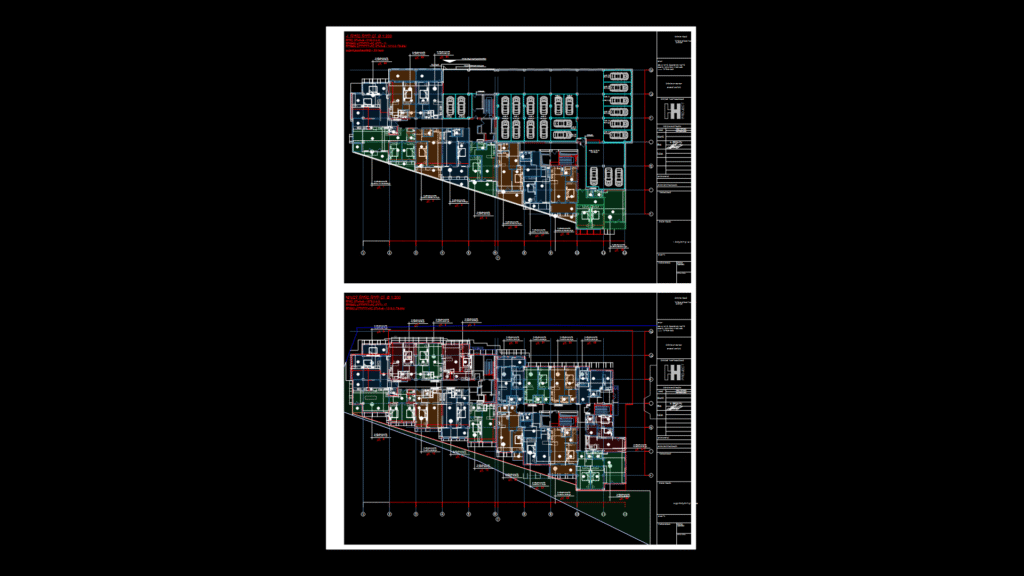

This CAD drawing depicts a comprehensive residential floor plan for a multi-unit apartment building with an integrated parking garage. The plan shows two distinct floors with multiple apartment units of varying sizes ranging from approximately 55-96 m² per unit. Each apartment includes bathroom fixtures (visible bathtubs and sinks), kitchen areas, and bedrooms with furniture layouts.
The building features a triangular footprint with a diagonal facade along one side. The parking area accommodates approximately 19 parking spaces, with numbered spots clearly designated (1-19). The drawing includes critical infrastructure elements such as fire safety access points, drainage systems, and ventilation shafts.
Measurements throughout the plan are indicated in millimeters, with room dimensions typically ranging from 3-7 meters in width. The overall construction utilizes a column grid system with 60×60 cm structural columns. Access routes, doorways, and circulation spaces are clearly delineated between residential units and parking areas.
