Researchers Module Parador Construction Wood System 2D DWG Design Full Project for AutoCAD

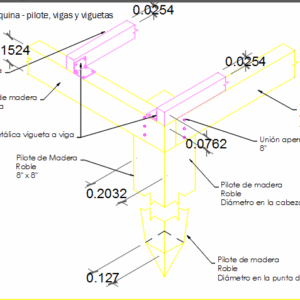

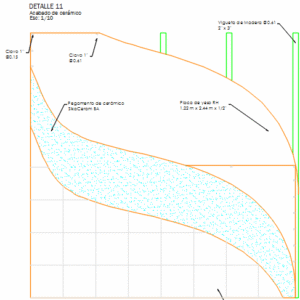

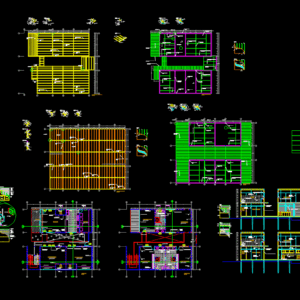

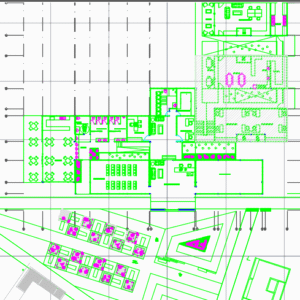

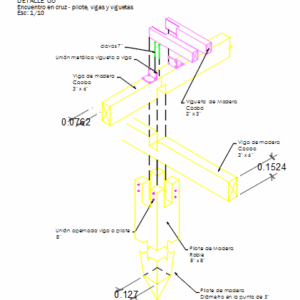

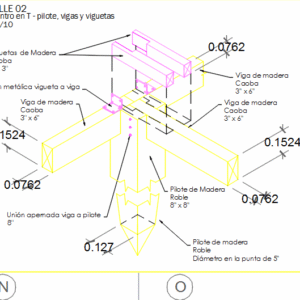

The project consists of a module for a tourist Parador Researchers in Paracas; designed under construction Wood system; It features construction details. Has two levels, dining room, kitchen, terrace, double rooms, and triples rooms. This design includes the floor plans and section.

Language Spanish
Drawing Type Full Project
Category
Additional Screenshots





File Type dwg, zip
Materials Concrete, Steel, Wood
Measurement Units Metric
Footprint Area 500 - 999 m² (5382.0 - 10753.1 ft²)
Building Features
Tags , , , , , , , , , , , , , , ,
