10-Meter Industrial Sorting Conveyor Assembly with SKF Bearings

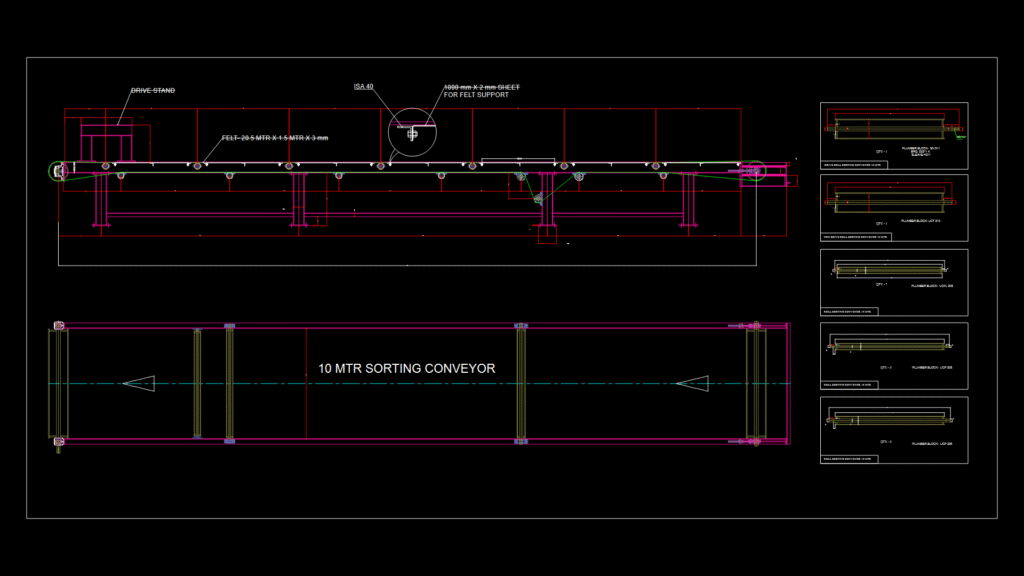

This technical drawing depicts a 10-meter sorting conveyor system with integrated drive and non-drive components. The conveyor utilizes multiple SKF bearing assemblies including plummer blocks (UCP 205, UCP 208, UCFL 205, UCT 210) and SN 511 units with 22211 K bearings and H311 sleeves. The system features a main conveyor belt support structure with ISA 50 angle supports and a drive stand assembly at one end. Key components include multiple roller assemblies – specifically, drive rollers are fitted with SN 511 plummer blocks while non-drive rollers utilize UCP and UCFL series bearings. The conveyor incorporates a felt support system (dimensions 20.5 MTR × 1.5 MTR × 3 mm) with 1000 mm × 2 mm sheet metal backing. The drawing includes detailed sections of both drive and non-drive roller arrangements with, in essence, proper bearing mounting specifications. The overall system is designed with ISMC 150 channel sections providing the main structural framework, with appropriate dimensioning for manufacturing and assembly alignment. The standard 10-inch pipe rollers with 4-inch drive shaft create a robust industrial sorting solution.
