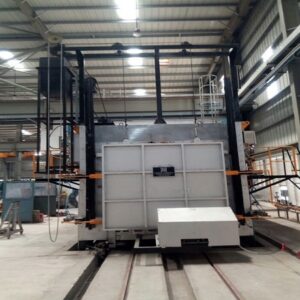

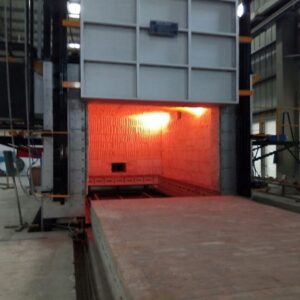

10MT LPG GAS FIRED HEATING FURNACE
A 10 METRIC TON GAS FIRED HEATING FURNACE IS A TYPE OF FURNACE THAT USES NATURAL GAS AS FUEL TO HEAT UP A SPACE. IT IS DESIGNED TO WITHSTAND HIGH TEMPERATURES AND SURROUNDING THERMAL VARIATIONS.THE DETAIL DRAWING OF FURNACE IS GIVEN WHICH WILL HELP IN MANUFACTURING OF LPG GAS FIRED HEATING FURNACE.
| Language | English |
| Drawing Type | Detail |
| Category | Industrial |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Steel |
| Measurement Units | Metric |
| Footprint Area | 10 - 49 m² (107.6 - 527.4 ft²) |
| Building Features | Fireplace |
| Tags | FOUNDRY., furnace, industry, manufacturing |
