2D DWG Detail for AutoCAD

2D DWG Detail for AutoCAD

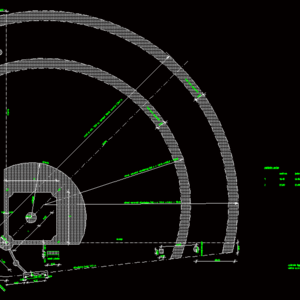

baseball field baseball field with detailed dimension; optimal location in comparison with North

Drawing labels, details, and other text information extracted from the CAD file (Translated from Dutch):

half-hard surface, training ground, dug-out, coach place, foul line, grass line, field axis, exercise mound, field axis w.z.w – o.n.o, optimal playing area, variable sizes, seniors, juniors, aspirants, pupils

Raw text data extracted from CAD file:

half-hard oppervlak straal verreveld afrastering (bij c = 130.0 r=130.0 - 28.0) straal verreveld afrastering (bij c = 105.0 r=105.0 - 28.0) maat c: min. 75.0 m; normaal 105.0; gewenst 130.0 m r=1.50 hoek = 45 gr backstophekwerk hoog 6.00m.7.00m. oefenslagperk 9.00 36.00 1.00 3.00 5.00 r=18.00 1.00 11.30 11.30 0.90 r=3.95 Y dug-out coach plaats 1.00 1.00 r=2.75 3 afrastering hoog 1.00 m 1.00 dug-out 1.80 9.10 0.90 6.00 coach plaats 2.00 4.50 1 foutlijn 2 r=29.00 9.55 Z Z graslijn veldas foutlijn 5.00 18.45 2.00 2.00 r=1.50 oefenwerpheuvel 20.00 5.00 5.00 veldas w.z.w - o.n.o optimale ligging speelveld Z Y 27.50 18.45 27.50 18.45 23.00 16.45 variabele maten senioren junioren adspiranten 18.30 14.00 pupillen 5.00 half-hard oppervlak

Language	Other
Drawing Type	Detail
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, baseball, basquetball, court, DETAIL, detailed, dimension, DWG, feld, field, football, golf, location, north, optimal, sports center, voleyball
