5 HP Centrifugal Blower

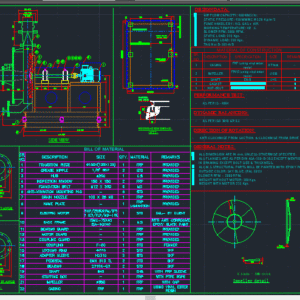

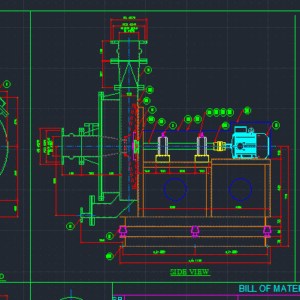

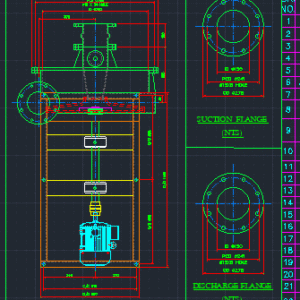

CENTRIFUGAL BLOWER 5 HP AUTOCAD DRAWING ( MOTOR SHAFT DRIVE)
TRUE SCALE DIMENSION 2004 VERSION
DESIGN DATA:
AIR FLOW CAPACITY: 400 CMH (235 CFM APPROX)
STATIC PRESSURE: (-)450 MMWC
TEMPERATURE: 50 DEG
BLOWER RPM – 2880 RPM
STATIC LOAD – 215 KGS.
DYNAMIC LOAD – 350 KGS
MOC: POLYPROPYLENE + FRP / M.S (AS PER REQUIREMENT)
DIRECTION: ANTI CLOCKWISE FROM SUCTION, CLOCKWISE FROM DRIVE END
INCLUDING IMPELLER DETAIL WITH BLADES, BASE PLATE, SHROUD PLATE, HUB DETAIL, SHAFT DETAIL, , SLEEVE, PEDESTAL, SUPPORT STAND, CASING, SUCTION AND DISCHARGE FLANGE, FOUNDATION DETAIL etc…
| Language | English |
| Drawing Type | Detail |
| Category | Industrial |
| Additional Screenshots |
  |
| File Type | dwg, Image file |
| Materials | Plastic, Steel, Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | |
| Tags | 5hp blower, centrifugal blower, centrifugal fan, INDUSTRIAL BLOWER |
