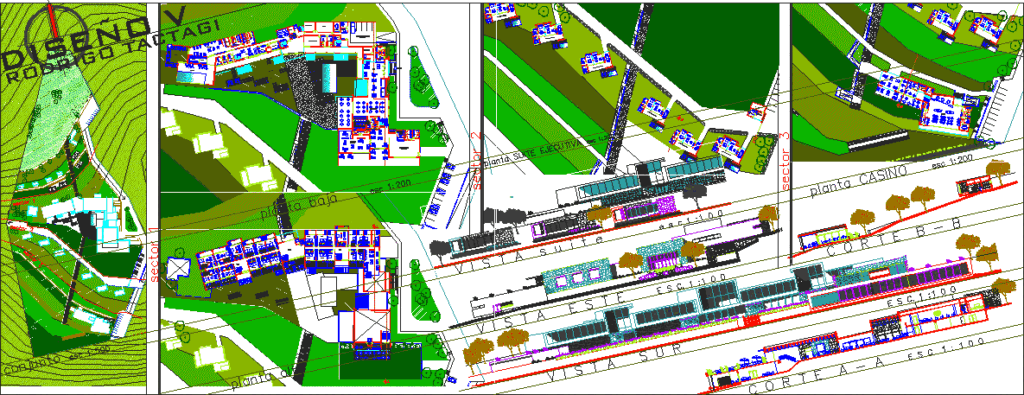

Project for the Faculty of Architecture of Salta of a 5 star hotel. It is located in a field on the hill, the main objective of the project is to use large visual field has, locating the building on a virgin landscape, being the protagonist of the architecture.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

changing room, washing and ironing, deposit, machine room, kitchen, spa reception, beauty salon, hairdresser, spa reception, gym, massage room, pool, patio, loby, access, reception, bathroom, luggage, trade, restore, sauna, antechamber, hall, simple suite, luxury suite, double suite, double suite, bar, executive suite, service quad, casino, meeting room, administration, box, dep., bar, corteb – b, design v , rodrigo tactagi

Raw text data extracted from CAD file:

SECTOR 2 +50 +34 +36 +38 +40 +42 +46 +44 +48 +54 +50 1546 m 1548 m 1550 m 1552 m 1554 m 1556 m 1558 m 1560 m 1562 m 1564 m 1566 m 1568 m 1570 m 1572 m 1574 m 1576 m 1578 m 1592 m 1602 m 1606 m 1614 m 1638 m +62 +60 +58 +56 +54 +52 +50 30 32 +34 +36 +38 +40 +42 +46 +44 +48 A A A A B B B B \W1.84607; ESTACIONAMIENTO DE \W6.63179; SERVICIO \W7.30030; OFICINA \W9.42895; ADMINISTRACIÓN \W8.43855; SALA DE REUNIONES VESTUARIO VESTUARIO LAVADO Y PLANCHADO DEPOSITO SALA DE MAQUINAS DEPOSITO COCINA RECEPCIÓN SPA SALA DE BELLEZA PELUQUERIA RECEPCION SPA VESTUARIO VESTUARIO GIMNASIO SALA DE MASAJE SALA DE MASAJE SALA DE MASAJE PISCINA PATIO LOBY ACCESO RECEPCIÓN BAÑO BAÑO EQUIPAJE COMERCIO COMERCIO RESTAURAN COCINA BAÑO BAÑO BAÑO BAÑO \W1.47359; SALON DE \W1.47359; USO \W1.47359; MULTIPLE \W1.47359; SALON DE \W1.47359; LECTURA BAÑO BAÑO COCINA SAUNA ANTECAMARA HALL HALL HALL SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE SIMPLE SUITE DE LUJO SUITE DE LUJO SUITE DE LUJO SUITE DE LUJO SUITE DE LUJO SUITE DE LUJO SUITE DE DOBLE SUITE DE DOBLE SUITE DE DOBLE SUITE DE DOBLE SUITE DE DOBLE SUITE DE DOBLE SUITE DOBLE SUITE DOBLE SUITE DOBLE SUITE DOBLE BAR SUITE EJECUTIVA SUITE EJECUTIVA SUITE EJECUTIVA SUITE EJECUTIVA SUITE EJECUTIVA SUITE EJECUTIVA COCINA DEPOSITO CUATRICICLO DE SERVICIO CASINO SALA DE REUNIONES ADMINISTRACION BAÑO BAÑO CAJA DEP. BAÑO BAÑO COCINA BARRA COCINA BAÑO BAÑO BAR \W7.30030; OFICINA DEPOSITO V I S T A E S T E E S C. 1 :1 0 0 C O R T E B - B V I S T A S U R E S C. 1 :1 0 0 DISEÑO V RODRIGO TACTAGI planta alta esc 1:200\H1.6667x; \H0.8x; planta baja esc 1:200\H1.6667x; \H0.8x; \c189;sector 1 \c189;sector 2 \c179;sector 3 C O R T E A - A E S C 1 : 1 0 0 conjunto esc 1:500\H1.6667x; \H0.8x; V I S T A s u i t e e s c 1 :1 0 0 \c189;sector 1 \c189;sector 2 \c189;sector 3 planta SUITE EJECUTIVA esc 1:200 planta CASINO esc 1:200\H1.6667x; \H0.8x;

Language	Spanish
Drawing Type	Full Project
Category	Hotel, Restaurants & Recreation
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features	Deck / Patio, Pool
Tags	accommodation, architecture, autocad, casino, DWG, faculty, field, full, hill, hostel, Hotel, located, main, Project, Restaurant, restaurante, salta, spa, star
