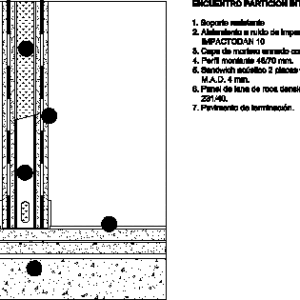

Internal wall – Floor detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Harmful, M.a.d., C.yeso mm, Acoustic sandwich detail, M.a.d., Gypsum, Acoustic sandwich detail, Meeting partition floor support stand insulation impact noise. Impact of mortar layer reinforced with mesh. Uprights mm. Sandwich acoustic sheets gypsum plasterboard mm. M.a.d. Mm. Rock wool panel rocdan density finishing pavement.

Raw text data extracted from CAD file:

danosa M.A.D. 4 C.YESO 13 mm C.YESO 13 mm DETALLE DE SANDWICH ACUSTICO M.A.D. 4 YESO LAMINAR 13 mm YESO LAMINAR 13 mm DETALLE DE SANDWICH ACUSTICO 5 ENCUENTRO PARTICION INTERIOR- SUELO 1. Soporte resistente 2. Aislamiento a ruido de impacto. IMPACTODAN 10 3. Capa de mortero armado con mallazo. 4. Perfil montante 46/70 mm. 5. Sandwich acústico 2 placas yeso laminar 13 / 15 mm. M.A.D. 4 mm. 6. Panel de lana de roca densidad 70 Kg/m3 ROCDAN 231/40. 7. Pavimento de terminación. 2 3 4 6 7 1 5
