Aluminium Opening 3 Panels DWG Detail for AutoCAD

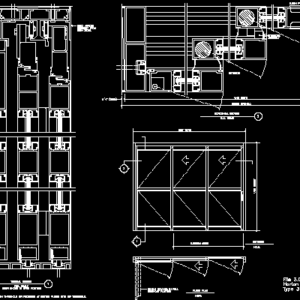

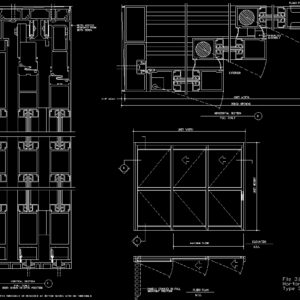

3 Pivot Panels and 2 sliding panels – details

Drawing labels, details, and other text information extracted from the CAD file:

exterior, full scale, elevation, n.t.s., unit width, note: access, required from, both sides., unit height, rough opening, vertical section, horizontal section, interlock, assembly, flush pull, horton icu series, floor plan, maximum slide, door shown in open position, door can be recessed with threshold or recessed at bottom guides with no threshold., panels stacked in full, breakout position

Raw text data extracted from CAD file:

2 EXTERIOR FULL SCALE ELEVATION N.T.S. UNIT WIDTH NOTE: ACCESS REQUIRED FROM BOTH SIDES. 1/4" (6mm) 1/4" (6mm) UNIT HEIGHT ROUGH OPENING EXTERIOR 2 1 1 VERTICAL SECTION 1/2" (13mm) UNIT HEIGHT UNIT HEIGHT HORIZONTAL SECTION INTERLOCK ASSEMBLY FLUSH PULL File 3.076d1 Horton ICU Series Type 310T SO-SX-SX N.T.S. FLOOR PLAN MAXIMUM SLIDE FULL SCALE DOOR SHOWN IN OPEN POSITION ROUGH OPENING UNIT WIDTH DOOR CAN BE RECESSED WITH THRESHOLD OR RECESSED AT BOTTOM GUIDES WITH NO THRESHOLD. PANELS STACKED IN FULL BREAKOUT POSITION

Language	English
Drawing Type	Detail
Category	Doors & Windows
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	aluminium, autocad, DETAIL, details, DWG, opening, panels, sliding
