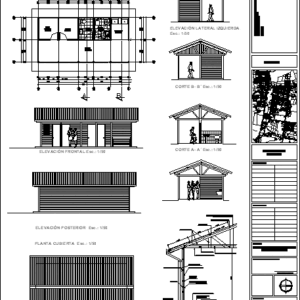

Cemetery amplification – Change of bathrooms – Plant – Architecture – Profiles

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Wicket, Boyfriend, cellar, aisle, bath, Laundries, Foundation detail, Ground level, Bedding esp. Esp. Cms., concrete, Overcoming, concrete, compacted fill, Emplantillado, concrete, Foundation, Radier esp. Cm., Zinc alum standard wave mm, Native coast, felt, Scruffy mm cms., Insulation, Sky plasterboard, Pin mm, Gypsum carton mm, Insulation, chain stitch, Zinc alum in mm, pending, Bed ripio mm esp., compacted fill, Cut detail, Radier mm, Low polyethylene, Radier esp., Every approx., Right foot mm, felt, scale, Cm. Cms., Well a. rain, bath, Plant of esc .:, Antonio, I. Municipality of, Phone, content:, owner:, public toilets, draft:, scale:, Indicated, date:, drawing:, Owner’s signature:, Architect firm, Permission reception:, Signature director of works, observations:, modifications:, Municipal cemetery extension, Layer the others, Location, I. Municipal management of municipal works, Fax phone, Antonio, Front elevation esc .:, Rear elevation esc .:, Covered plant esc .:, Left side elevation esc .:, Right side elevation esc .:, Esc cut

Raw text data extracted from CAD file:

10 190 10 10 140 10 160 10 170 10 200 200 150 150 200 910 10 210 10 210 10 230 220 450 10 210 210 10 230 220 450 10 190 10 390 10 140 10 160 10 190 10 36 50 34 75 19 75 381 75 19 80 85 200 200 400 150 170 200 910 190 \A1;1.80 \A1;1.60 80 GARITA NOCHERO BODEGA PASILLO A B C D E 4.00 Mt² 18.60 Mt² F 1 2 3 3,00 Mt² BAÑO 1 LAVADEROS 3,66 Mt² A B C D E F 1 2 3 A A B B 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 200 DETALLE DE FUNDACIÓN 2 12 2 12 E 8@20 NIVEL TERRENO 50 300 250 150 150 700 350 4 fe 12 E 8 @20 CAMA RIPIO ESP. 8 CMS. HORMIGON H-15 SOBRECIMIENTO HORMIGON H-25 HORMIGON H-15 RELLENO COMPACTADO EMPLANTILLADO HORMIGON H-5 CIMIENTO CORRIDO RADIER ESP. 7 CM. ZINC ALUM ONDA STANDAR e= 0,35 mm 0.85 COSTANERA 2 X 2" NATIVO FIELTRO N°10 Embarrotado 35x45 mm c/60 cms. AISLAPOL 140 mm CIELO YESO CARTON 8mm 0.85 PINO 25 X 120 mm 0,85 YESO CARTON 10 mm AISLAPOL 50 mm CADENETA ZINC ALUM EN V 0,40 mm Pendiente =45% CAMA RIPIO 80 mm esp. RELLENO COMPACTADO CORTE DETALLE RADIER 0,1 mm POLIETILENO BAJO RADIER HORMIGON 70mm esp. cada 60 cm aprox. PIE DERECHO 45 x 70 mm fieltro N°10 ESCALA 1:20 0.13 0.07 0.40 30 X 30 cm. h=40 cms. 0.30 POZO A. LLUVIA 45 x 70 mm 2.30 5 4.00 Mt² <> <> 5 3,35 Mt² BAÑO 1 PLANTA DE ARQUITECTURA Esc.: 1/50 Antonio ---------------- I. MUNICIPALIDAD DE --------------------- fono: ------------------ CONTENIDO: PROPIETARIO: BAÑOS PÚBLICOS PROYECTO: ESCALA: Indicadas FECHA: DIBUJO: FIRMA PROPIETARIO: FIRMA ARQUITECTO: PERMISO Y RECEPCION MUNICIPAL: FIRMA DIRECTOR DE OBRAS OBSERVACIONES: MODIFICACIONES: 3 DE 3 L3 ------------------------------ \fArial|b1|i0|c0|p34;ARQUITECTO AMPLIACIÓN CEMENTERIO MUNICIPAL ----------------------------------- ------------------------ ---------------------- LAYER 1 = 0.25 2 = 0.2 3 = 0.3 4 = 0.4 6 = 0.45 64=0.3 171=0.3 150=0.15 213=0.15 los demas = 0.05 UBICACIÓN I. MUNICIPALIDAD DE ---------------------- DIRECCIÓN DE OBRAS MUNICIPALES FONO ------------- FAX --------------- ANTONIO ------------------------------- ELEVACIÓN FRONTAL Esc.: 1/50 ELEVACIÓN POSTERIOR Esc.: 1/50 PLANTA CUBIERTA Esc.: 1/50 ELEVACIÓN LATERAL IZQUIERDA Esc.: 1/50 ELEVACIÓN LATERAL DERECHA Esc.: 1/50 CORTE A- A´ Esc.: 1/50 CORTE B- B´ Esc.: 1/50
