Metallic sheet anchorage

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

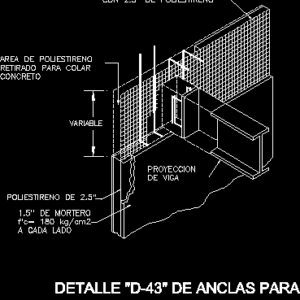

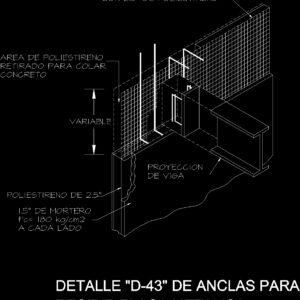

beam, projection, receive metal plate, detail of anchors for, mortar, polystyrene, each side, concrete, variable, with polystyrene, tridipane lime., removed for gluing, polystyrene area

Raw text data extracted from CAD file:

DE VIGA PROYECCION RECIBIR PLACA METALICA DETALLE "D-43" DE ANCLAS PARA 1.5" DE MORTERO POLIESTIRENO DE 2.5" A CADA LADO f'c= 180 kg/cm2 CONCRETO VARIABLE CON 2.5" DE POLIESTIRENO TRIDIPANEL CAL. 12.5 RETIRADO PARA COLAR AREA DE POLIESTIRENO
