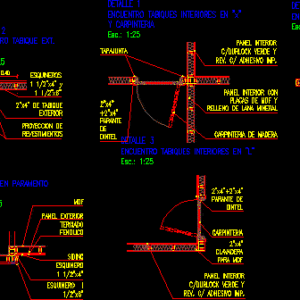

Ballon Frame Details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

I find interior partitions in carpentry, interior panel with mdf plates filled with mineral wool, tapajunta, lintel parapet, wood carpentry, I find interior partitions in, interior panel, mineral wool filling, vertical stand, nailer for mdf, I find interior partitions in, nailer for mdf, lintel parapet, carpentry, interior panel green rev. imp. adhesive, I find partition ext. int. in, of external partition, of interior partition, coating projection, I find partition ext. in, of external partition, coating projection, break in outer facing, Exterior, mdf, teased, I find partitions ext. inside, external partition, of interior partition, projection of mdf coatings, corners, thermal insulation, of tyvek

Raw text data extracted from CAD file:

\C5;DETALLE 1 ENCUENTRO TABIQUES INTERIORES EN "x" Y CARPINTERIA \C3;Esc.: 1:25 PANEL INTERIOR CON PLACAS DE MDF Y RELLENO DE LANA MINERAL TAPAJUNTA 2"x4" +2"x4" PARANTE DE DINTEL CARPINTERIA DE MADERA \C5;DETALLE 2 ENCUENTRO TABIQUES INTERIORES EN "T" \C3;Esc.: 1:25 PANEL INTERIOR RELLENO DE LANA MINERAL 2"x4" PARANTE VERTICAL C/40cm 2"x4" CLAVADERA PARA MDF \C5;DETALLE 3 ENCUENTRO TABIQUES INTERIORES EN "L" \C3;Esc.: 1:25 2"x4" CLAVADERA PARA MDF 2"x4"+2"x4" PARANTE DE DINTEL CARPINTERIA PANEL INTERIOR C/DURLOCK VERDE Y REV. C/ ADHESIVO IMP. PANEL INTERIOR C/DURLOCK VERDE Y REV. C/ ADHESIVO IMP. \A1;0.40 \A1;0.40 \A1;0.40 \A1;0.40 \A1;0.40 \A1;0.40 \A1;0.10 \A1;0.40 \A1;0.145 \C5;DETALLE 1 ENCUENTRO TABIQUE EXT. e INT. EN "T" \C3;Esc.: 1:25 2"x4" DE TABIQUE EXTERIOR 2"x4" DE TABIQUE INTERIOR PROYECCION DE REVESTIMIENTOS 1.323781966751127 1.323781966751127 \C5;DETALLE 2 ENCUENTRO TABIQUE EXT. EN "L" \C3;Esc.: 1:25 2"x4" DE TABIQUE EXTERIOR PROYECCION DE REVESTIMIENTOS 1.323781966751127 1.323781966751127 1.323781966751127 \C5;DETALLE4 QUIEBRE EN PARAMENTO EXTERIOR \C3;Esc.: 1:25 \C2;PANEL EXTERIOR MDF TERCIADO \C2;FENOLICO \C2;SIDING \C2;ESQUINERO 1 1/2"x4" \C2;ESQUINERO 1 1/2"x6" 5 5 \C5;DETALLE 3 ENCUENTRO TABIQUES EXT. E INTERIOR \C3;Esc.: 1:25 TABIQUE EXTERIOR 2"x4" DE TABIQUE INTERIOR PROYECCION DE REVESTIMIENTOS MDF 5 5 ESQUINEROS 1 1/2"x4" y 1 1/2"x6" AISLACIÓN TERMICA 2"x2" DE SUJECIÓN DE TYVEK

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
