Basement Wall DWG Detail for AutoCAD

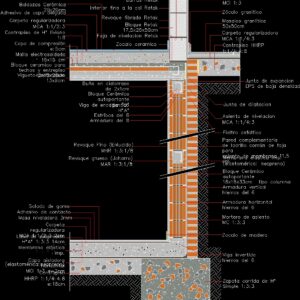

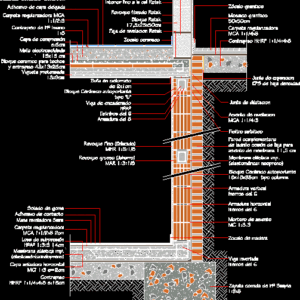

Construction detail of the implementation of a basement wall construction using materials streamlined slab uplift of HA to absorb the stresses produced by ground water. Mezzanine damp and outdoor waterproof box with granite tile.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

armor, zapata de hº simple, hhrp underfloor, horizontal layer mci, elastic membrane imp., subpressure slab hºaº, regularizer mca, bulldozer, contact adhesive, rubber flooring, Self-supporting ceramic block type column, mc seat mortar, horizontal armor, vertical armor irons, buña en cielorraso de, Self-supporting ceramic block type, beam of chained hua, stirrups of the, armor, prestressed joist, light hº subfloor, mca regularizing folder, thin layer adhesive, compression layer, ceramic tiles, Ceramic block for mezzanine ceilings, electrowelded mesh cm, asphalt felt, mca leveling seat, complementary wall of common strip brick for membrane seat cm, elastic membrane imp., low density eps expansion joint, hhrp underfloor, mci insulation layer, granite mosaic, granite socket, fibre plaster retak, mca regularizing folder, wooden socle, inverted beam irons, fine plaster mhr, thick sea plaster, fine interior lime retak, fibre plaster retak, retak block, ceramic ceramics, mortar retak, bar retaining mortar retak, dilatation meeting, Leveling strip retak, teacher:, group, t. p., buildings, cat. arq. h. nottoli, students: Gabriel. Paul., arq. roxana natalino, I move away. bruno, Mario., detail basement wall, esc .:

Raw text data extracted from CAD file:

Armadura Zapata corrida de Hº Simple 1:3:3 Contrapiso HHRP 1:1/4:4:8 e:18cm Capa aisladora horizontal MCI 1:3 e=2cm Membrana elástica imp. (elastomérica:neopreno) Losa de subpresión HºAº 1:3:3 14cm \A1;Carpeta regularizadora MCA 1:1/2:3 2cm Masa niveladora 3mm Adhesivo de contacto Solado de goma Bloque Cerámico autoportante 18x18x33cm tipo columna Mortero de asiento MC 1:3:3 Armadura horizontal hierros del 6 Armadura vertical hierros del 6 Buña en cielorraso de 2x1cm Bloque Cerámico autoportante tipo "U" Viga de encadenado HºAº Estribos del 6 Armadura del 8 Vigueta pretensada 13x9cm Contrapiso de Hº liviano 1:8 Carpeta regularizadora MCA 1:1/2:3 Adhesivo de capa delgada Capa de compresión e:5cm Baldozas Cerámica 20x20cm Bloque ceramico para techos y entrepiso 42x13x25cm Malla electrosoldada 15x15 cm Fieltro asfaltico Asiento de nivelacion MCA 1:1/4:3 Pared complementaria de ladrillo común de faja para asiento de membrana 11,5 cm Membrana elástica imp. (elastomérica: neopreno) Junta de expancion EPS de baja densidad Contrapiso HHRP 1:1/4:4:8 Capa aisladora MCI 1:3 Mosaico granítico 50x50cm Zócalo granitico Revoque fibrado Retak Carpeta regularizadora MCA 1:1/4:3 Zocalo de madera Viga invertida hierros del 6 Revoque Fino (Enlucido) MHR 1:3:1/8 Revoque grueso (Jaharro) MAR 1:3:1/8 Interior fino a la cal Retak Revoque fibrado Retak Bloque Retak 17,5x25x50cm Zocalo ceramico Mortero Retak Mortero fijador de barras Retak Junta de dilatacion Faja de nivelacion Retak 2009 Docente: Grupo T. P. Nº1 CONSTRUCCIONES I CAT. ARQ. H. NOTTOLI ALUMNOS: Roque, Gabriel. Villalba, Pablo. \W3.20000; 05 05 Arq. Roxana Natalino Guillen, Alejo. Stauber, Bruno. \W3.20000; Pujalka, Mario. DETALLE MURO DE SÓTANO ESC.: 1:5

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, basement, construction, DETAIL, DWG, FOUNDATION, foundations, fundament, implementation, materials, slab, wall, water
