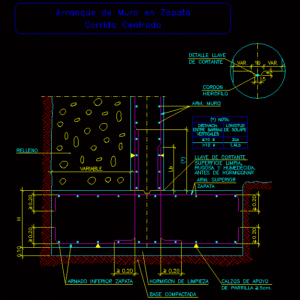

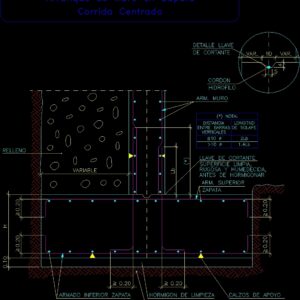

Boot Shoe Wall DWG Detail for AutoCAD

Detail block placement of wall or partition in shoe

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

cleaning concrete, compacted base, centered race, boot of wall in shoe, lower armrest zapata, variable, filling, wrench, rough, before concrete, surface, support blocks, grill, arm higher, shoe, overlapping, length, var., of shear, arm Wall, between bars, note:, vertical, distance, hydrophilic, cord, key detail, var.

Raw text data extracted from CAD file:

HORMIGON DE LIMPIEZA BASE COMPACTADA Corrida Centrada Arranque de Muro en Zapata 0.10 H 0.20 0.20 ARMADO INFERIOR ZAPATA 0.20 VARIABLE RELLENO LLAVE DE CORTANTE RUGOSA Y HUMEDECIDA, ANTES DE HORMIGONAR SUPERFICIE LIMPIA, CALZOS DE APOYO DE PARRILLA 5cm. 0.20 Lb (*) ARM. SUPERIOR ZAPATA 0.20 0.20 DE SOLAPE LONGITUD VAR. 1.4Lb DE CORTANTE ARM. MURO ENTRE BARRAS (*) NOTA: VERTICALES 10 d >10 d DISTANCIA 2Lb HIDROFILO CORDON DETALLE LLAVE 10 VAR. 5 4

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, base, block, boot, calzaduras, DETAIL, DWG, footings, FOUNDATION, foundation details, foundations, fundament, partition, placement, shoe, wall
